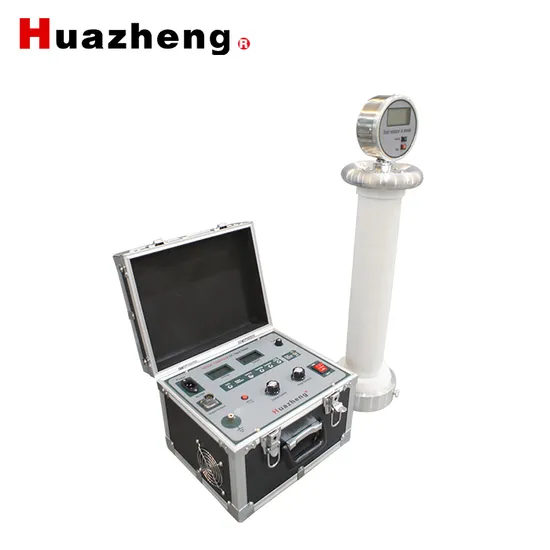

China DC High Voltage Testing Equipment 60kv Hipot Insulation Tester
| US$1,500.00-5,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HZZGF
Type
Strength Testing Machine
Maxcapacity
400kv
Accuracy Grade
0.5
Load Way
Mechanical Load
Loading Method
Static Load
Display
Digital
Control
Manual Control
Weight
0-100Kg
Power Source
AC220V
Oil Cylinder Position
Top
Brand Name
DC Hipot
Output Type
DC
Frequency
50Hz
Rated Current
Rated Current
Usage
High Voltage Generator
Certification
CE ISO
Ripple Factor
≤0.5%
Power Supply
Single-Phase Current 50Hz
Hv Generator
DC Hv Generator
Voltage Generator
Generator Capacitor
Transport Package
Wooden Box with Foam Inside
Specification
CE/ISO/IEC
Trademark
HuaZheng
Origin
Hebei, China
HS Code
9030339000
Production Capacity
100 PCS/Month
Product Description
China DC High voltage Testing Equipment 60kv Hipot Insulation TesterI.Introduction DC high voltage generator is DC high voltage power supply equipment.
It have functions of switch on protection under 0 voltage,over voltage and over current protection.
They are high stability and reliability.
It is easy to operate , small in size and light in weight.
II.Function
DC high voltage test for the power supply department, for example: DC HV withstand and leakage current test in power cables, the conductance current and 1mA reference voltage of magnetic blow out arrester and zinc oxide arrester test.
Using as power supply of laser, also electrostatic painting and twine and so on.
Other place required DC high voltage.
III.Major parameters
| Voltage (KV)/mA Current (mA) | Control Box | High-Voltage Unit | |||
| Rated Voltage | Size (mm) | Weight kg | Size (mm) | Weight kg | |
| 60/2-5 | 60KV | 310 * 250 * 230 | 5kg | 470 * 260 * 220 | 6kg |
| 80/2-5 | 80KV | 310 * 250 * 230 | 6kg | 490*260*220 | 8kg |
| 100/2-5 | 100KV | 310 * 250 * 230 | 6kg | 550*260*220 | 8kg |
| 120/2-5 | 120KV | 310 * 250 * 230 | 7kg | 600 * 260 * 220 | 10kg |
| 200/2-5 | 200KV | 310 * 250 * 230 | 8kg | 1000 * 280 * 270 | 20kg |
| 300/2-5 | 300KV | 310 * 250 * 230 | 9kg | 1300 * 280 * 270 | 22kg |
| output polarity | Negative polarity, no-voltage start, linear continuous adjustment | ||||
| working power supply | 50HZ AC220V±10% | ||||
| voltage error | 0.5%±2,minimum solution 0.1KV | ||||
| current error | 0.5%±2,minimum solution 0.1µA | ||||
| ripple factor | better than 0.5% | ||||
| voltage stability | Random flunctuation , grid change is 10% , the flunctuation <=0.5% | ||||
| working manner | Interval working, less than 30 minutes under rated load | ||||
| working condition | Temperature: 0-40ºC, humidity: less than 90% | ||||
| storage condition | Temperature: -10ºC~40ºC, humidity: less than 90% | ||||
V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on. Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
