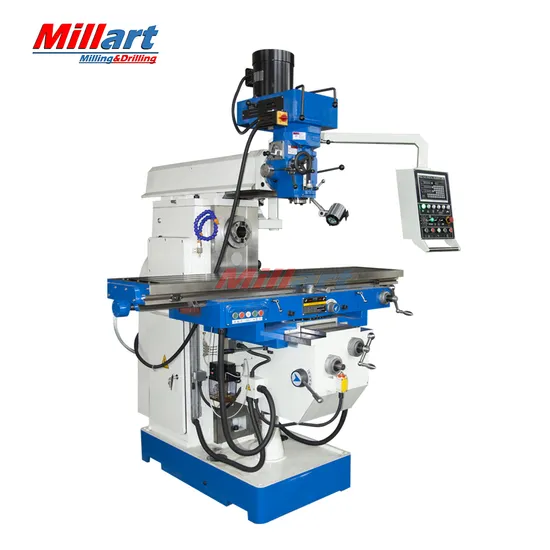

Big Automatic Turret Milling XL6340 Turret Milling Machine with Servo Motor
| US$9,000.00-11,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6340
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1600X400mm
X/Y/Z Table Travel
1250/450/650mm
Main Motor Power
5.5 Kw (H) 3.7 Kw (V)
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8459590000
Production Capacity
50 PCS/Month
Product Description
Big Automatic Turret Milling XL6340 Turret Milling Machine with Servo MotorFeature:
1. Universal milling machine featuring a moveable arm and big clamping area
2. Big dimensioned guidings in all axis guarantees absolute precision and stability.
3. Variable feeding feeds in all 3 axis, driven by servomotor
4. Work table swivel from -50° to +50°.
5. Mill head from -90° to +90° angle, allows for various operations
6. The machine is serially equipped with an automatic spindle feed
7. Turret milling head from Taiwan
Specifications:
| Model | Unit | XL6340 Servo |
| Table size | mm | 1600×400 |
| Table travel (X/Y/Z) | mm | 1250/450/650 |
| Table loading capacity | kg | 800 |
| Table feed. (X/Y/Z) | mm/min | 25~800/25~800/8-267 |
| Table swivel angle | ±50° | |
| Spindle taper | 7:24 ISO50 (H) 7:24 ISO40 (V) | |
| Stroke of spindle quill | mm | 127 (V) |
| Distance between spindle nose and table | mm | 200-850 |
| Distance between horizontal spindle and table | mm | 0-500 |
| Distance between horizontal spindle and arm | mm | 200 |
| Spindle speed range | r.p.m | 12 steps 60-1850 (H) 16 steps 66~4540 (V) |
| T-slots(NO./width/pitch) | mm | 3/18/100 |
| Arm travel | mm | 700 |
| Main motor power | Kw | 5.5 (H) 3.7 (V) |
| Torque of X/Y/Z axis AC servo motor | N.m | 10 |
| Overall size | mm | 2520×2100×2500 |
| Net weight | kg | 3250 |
Standard accessories:
| X Y Z axis servo motor |
| Worktable swivel ±50° |
| Drill chuck |
| Collet chuck kits |
| Reduction sleeve |
| Draw bar |
| Mill arbors |
| Working lamp |
| Coolant system |
| Lubricating |
| Chip tray |
| Tools and box |
Optional accessories:
| Air draw bar |
| 58 pcs Clamping kits |
| Spindle protection |
| Machine vice 160mm |
| XYZ axis Digital readout(DRO) |
| Rotary table HV-12 |
| Universal dividing head F11-160A |
| Variable spindle speed |
