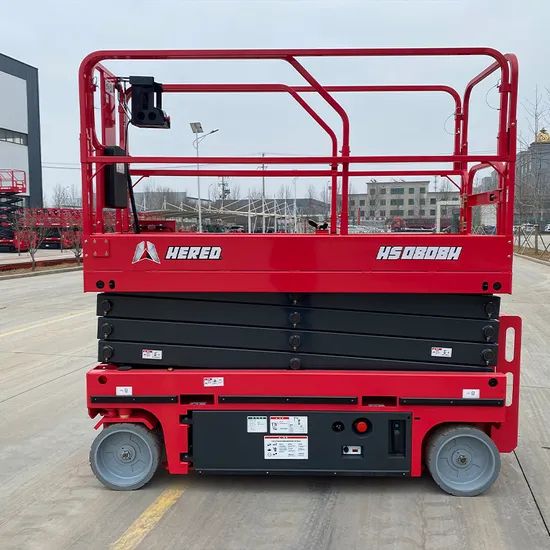

Original Manufacture Height Lift Machine Hydraulic Scissor Lifting Platform for Sale
| US$7,000.00-7,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HS0808H
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating, Spillover Valve
Certification
GS, CE, RoHS, ISO 9001, ANSI
up/Down Time
31/40s
Gradeability
0.25
Control
Proportional
Multi Disc Brake
Rear
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
2.43m x 0.81m x 2.36m
Trademark
HERED
Origin
China
HS Code
84289090
Production Capacity
20, 000 Units/Year
Packaging & Delivery
Package Size
243.00cm * 81.00cm * 236.00cm
Package Gross Weight
2240.000kg
Product Description
Online consultation to get the lowest price1. Optimized matching, high cycle times, better endurance.
2. Precise control greatly improves the smoothness of operating.
3. Large ground clearance, stronger passability
| MODEL | HS0808H |
| Max. Working Height(In/out) | 9.9m/8m |
| A-Max. Platform Height(In/out) | 7.9m/6m |
| B-Platform Length | 2.26m |
| C-Platform Width | 0.81m |
| Extension Size | 0.9m |
| D-Heights (Rails Up) | 2.36m |
| Height (Rails Down) | 1.96m |
| E-Length (with Ladder) | 2.43m |
| F-Overall Width | 0.81m |
| G-Wheel Base | 1.87m |
| H-Clearance (Stowed) | 0.1m |
| I-Clearance (Raised) | 0.02m |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 2/1 |
| Max.Drive Speed (Stowed) | 3.5km/h |
| Drive Speed (Raised) | 0.8km/h |
| Turning Radius (Out.) | 2.1m |
| Up/Down Time | 31/40s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Control | Proportional |
| Drive | FWD |
| Multi Disc Brake | Rear |
| Tires (mm) | 381mmX127mm |
| Max.Wind Speed | 12.5m/s |
| POWER | |
| Batteries (V/Ah) | 24V/200Ah |
| Charger | 100-240VAC/10A |
| WEIGHT | |
| Weight | 2240kg |
