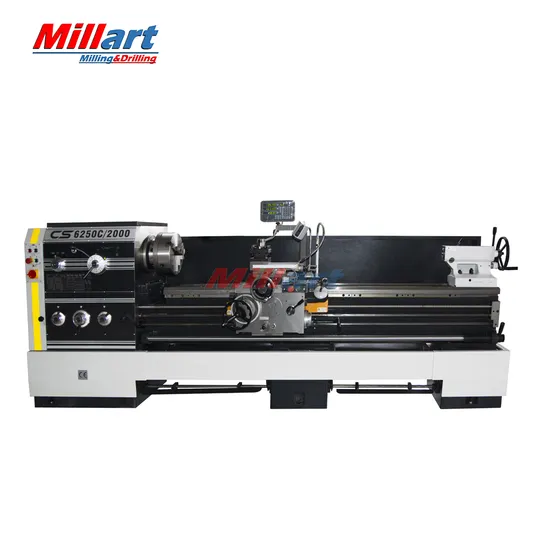

Metal Gap Lathe Machine CS6250c Convention Parallel Turning Machine

Metal Gap Lathe Machine CS6250c Convention Parallel Turning Machine

US$9,000.00-11,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CS6250C
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
500 mm
Bed Width
400 mm
Spindle Bore
105 mm
Spindle Motor Power
7.5 Kw
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8458190000
Production Capacity
200 PCS/Month

Product Description

Metal Gap Lathe Machine CS6250C Convention Parallel Turning Machine
Feature:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Technical parameter:
Model UNIT CS6250C
Capacity Max. swing dia. over bed mm 500
Max. swing dia.in gap mm 710
Max. swing dia. over slides mm 300
Max. workpiece length mm 1000/1500/2000/3000
Bed width mm 400
Spindle Spindle bore diameter mm 105
Type of spindle nose no ISO 702/II NO.8 com-lock type
Spindle speed rpm 12 steps 36-1600
Spindle motor power KW 7.5
Tailstock Diameter of quill mm 75
Max. travel of quill mm 150
Taper of quill (Morse) MT 5
Turret Tool O.D. size mm 25X25
Feed Max. X travel mm 145
Max. Z travel mm 320
X feed range mm/r 65 kinds 0.063-2.52
Z feed range mm/r 65 kinds 0.027-1.07
Metric threads mm 22 kinds 1-14
Inch threads t.p.i 25 kinds 28-2
Module threads πmm 18 kinds 0.5-7
Diametricpitch threads t.p.i.π 24 kinds 56-4
Others Length mm 2632/3132/3632/4632
Width mm 975
Height mm 1270
Weight kg 2100/2300/2500/2900

Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Drive plate
Dead centers
Splash guard
Oil tray
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Some tools
Optional accessories:
Tapper turning attachment
Quick change tool post
Live center
Digital readout
Thread chasing dial
Chuck guard
Tool post guard
Company information:
FAQ:
1: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
