1800 kN Efficient Syringe Making Machine Quality Plastic Moulding Machinery
Basic Info.
Model NO.
NT-1018
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Product Name
Plastic Injection Molding Machine
Machine Type
Horizontal/Hydraulic/Electric
Application
Plastic Industry
Operating Langauge
English/ Customization
Auxiliary Equipment
Robot Arm/Chiller/Crusher/Auto Loader.etc
Delivery Time
45-60 Days
Shipping Method
Full 20gp/40gp/40hq Container
Transport Package
at Seller′s Option
Specification
1800KN
Trademark
LEANTALL
Origin
China
Production Capacity
20sets/Month
Packaging & Delivery
Package Size
550.00cm * 150.00cm * 250.00cm
Package Gross Weight
5500.000kg
Product Description

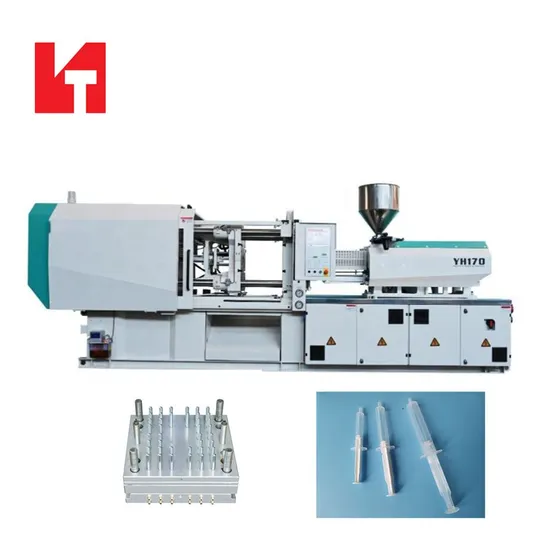

180 Ton Plastic Injection Molding MachinePlastic injection molding Machine consists of a plasticizing system, injection system, clamping system, and transmission system.
We have been applying die-casting technologies to injection molding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, a perfect combination of dynamic pressure casting and speed.
To improve the stability of syringe production, we specially add an infrared heating coil to the standard injection molding machine. In addition, we recommend adding a servo motor system, although the servo motor will increase the cost of the injection molding machine, the servo motor system has the advantage of energy saving, in long-term production, it is more economical, so nowadays more and more companies choose servo motor system.
| Item | Unit | NT100 | NT120 | NT140 | NT170 | NT180 | NT200 | ||||||||||||
| SCREW DIAMETER | mm | 30 | 32 | 35 | 38 | 42 | 45 | 38 | 42 | 45 | 42 | 45 | 50 | 42 | 45 | 50 | 45 | 50 | 55 |
| SCREW L/D RATIO | L/D | 23.5 | 22 | 20 | 22 | 20 | 18.5 | 22 | 20 | 18.5 | 21.4 | 20 | 18 | 21.4 | 20 | 18 | 22.2 | 20 | 18.2 |
| INJECTION STROKE | mm | 165 | 165 | 165 | 170 | 170 | 170 | 170 | 170 | 170 | 225 | 225 | 225 | 225 | 225 | 225 | 250 | 250 | 250 |
| INJECTION SPEED | Mm/sec | 88 | 88 | 88 | 90 | 90 | 90 | 112 | 112 | 112 | 118 | 118 | 118 | 94 | 94 | 94 | 103 | 103 | 103 |
| SHOT VOLUME(THEORETICAL) | CM3 | 117 | 133 | 158 | 193 | 235 | 270 | 193 | 235 | 270 | 312 | 358 | 442 | 312 | 358 | 442 | 397 | 490 | 594 |
| INJECTION WEIGHT(PS) | g | 106 | 121 | 144 | 175 | 213 | 245 | 175 | 213 | 245 | 284 | 326 | 402 | 284 | 326 | 402 | 361 | 445 | 540 |
| INJECTION PRESSURE | Mpa | 230 | 203 | 170 | 177 | 145 | 126 | 177 | 145 | 126 | 174 | 152 | 123 | 218 | 190 | 154 | 221 | 179 | 148 |
| INJECTION RATE | cm3/sec | 62 | 70 | 84 | 102 | 124 | 143 | 127 | 155 | 178 | 163 | 187 | 231 | 130 | 149 | 184 | 163 | 202 | 244 |
| SCREW SPEED | rpm | 181 | 190 | 212 | 210 | 210 | 225 | ||||||||||||
| CLAMP FORCE | Kn | 1000 | 1200 | 1400 | 1700 | 1800 | 2000 | ||||||||||||
| OPEN STROKE | mm | 320 | 360 | 390 | 435 | 435 | 435 | ||||||||||||
| SPACE BETWEEN TIE BARS | mm×mm | 360*360 | 420*380 | 420*420 | 470*470 | 525*465 | 480*480 | ||||||||||||
| MAX.MOULD HEIGHT | mm | 350 | 430 | 460 | 550 | 550 | 550 | ||||||||||||
| MIN.MOULD HEIGHT | mm | 150 | 150 | 160 | 180 | 180 | 180 | ||||||||||||
| EJECTOR STROKE | mm | 90 | 107 | 120 | 129 | 129 | 135 | ||||||||||||
| EJECTOR FORCE | Kn | 30 | 40 | 46 | 46 | 46 | 46 | ||||||||||||
| EJECTOR NUMBER | N | 5 | 5 | 5 | 5 | 5 | 5 | ||||||||||||
| MAX.PUMP PRESSURE | Mpa | 16 | 16 | 16 | 16 | 16 | 16 | ||||||||||||
| SEVRO DRIVE POWER | Kw | 11 | 15 | 18.5 | 22 | 22 | 30 | ||||||||||||
| HEATING POWER | Kw | 7 | 7.5 | 7.5 | 9.9 | 9.9 | 12.5 | ||||||||||||
| MACHINE DIMENSION(L*W*H) | m×m×m | 4.2*1.2*1.8 | 4.6*1.3*2.1 | 4.8*1.3*2.1 | 5.3*1.4*1.2 | 5.4*1.4*2.3 | 5.4*1.45*2.1 | ||||||||||||
| MACHINE WEIGHT(ESTIMATE) | T | 3.1 | 3.5 | 3.8 | 4.9 | 5.4 | 5.5 | ||||||||||||
| ADVANTAGES | |
| 1. Clamping Unit Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite-Element Analysis; High-speed clamping is stable while low-pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose. | |
| 2. Injection Uni Double-cylinder balance injection system; Shot weight is precisely controlled by transducer; Using a hydraulic motor to carry out variable speed. | |
| 3. Hydraulic Unit Domestic high-tech divided hydraulic system; Hydraulic safety device; and Imported high-quality hydraulic components are applied. | |
| 4. Electric Unit Special controller for plastic injection molding machine; All the main components are imported from famous companies, for example, TE(France), Gefran(Italy), etc. | |
| Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested. |
