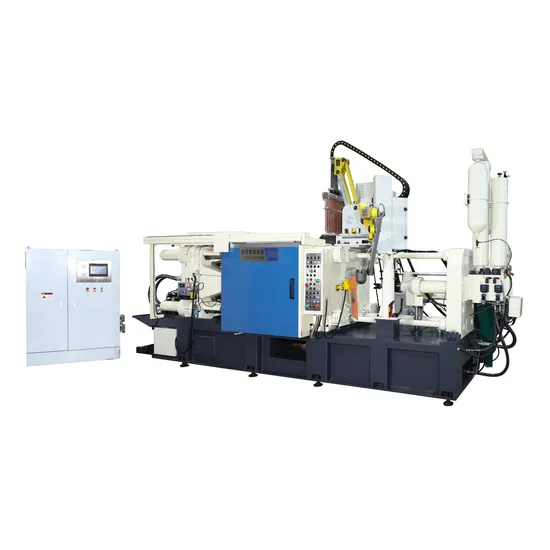

Cold Chamber Die Casting Machine DC400ton for Aluminum Injection Molding

Product Description

Product Description
Dual-proportional control hydraulic power system
Dual-proportional control of the hydraulic system, intelligent dynamic operation, clear high-pressure throttling, reduce oil temperature.
Improve the stability of the whole machine and ensure the product quality.
Flexible and smooth action conversion, reduce the impact of action, and prolong the service life of machinery and molds.
Dual proportional control hydraulic system, pressure and speed can be adjusted.
Clamping System
Four large bar guide pillars, using high-tensile steel as raw materials, the surface is hardened by high-frequency heat treatment, and the outer layer is re-plated with hard chrome, which has high wear resistance and prolongs the service life of the machinery.
The three major formwork and machine hinges are made of high-strength ductile iron and double-toggle connecting rod five-point expansion structure to provide strong clamping force.
The clamping action is divided into multi-level pressure and speed control and low-pressure clamping protection function.
Double-cylinder hydraulic ejection design provides balanced ejection force and reduces the factors of product ejection deformation.
Injection systemTwo independent high-speed and booster accumulators are adopted, each with sufficient storage capacity, and the high-speed and pressurization do not affect each other to ensure stable injection force.
The slow injection is controlled by an electric proportional valve, which is sensitive and stable.
The injection action is controlled by multi-stage speed, which is suitable for various mold product process requirements.
Wide injection speed adjustment range, slow injection speed 0.1-1.4m/s.
High-speed injection: The maximum air injection speed >= 8.5m/s. Guarantee of high-quality castings.
Active check pressurization system: short pressure construction time, small pressure impact, high repeatability. It is suitable for the production of high-density castings.
Multi-injection position lifting, suitable for the production of molds with different structures.

Electrical control systemsSiemens control system and Siemens touch screen, easy to control, rich function pages, to meet the control of die-casting process.
Powerful parameter storage function, up to 60 sets of mold parameters can be stored, which is convenient for future production call, improves production efficiency, and maintains consistent product quality.
The fuselage line is made of oil-resistant and temperature-resistant and outer steel wire protection wire. Even in harsh environments, it is well protected to ensure normal production.
The line connecting the fuselage and the main control box adopts aviation plug, which is safe and reliable, and easy to maintain.
Finished pictures
Product Parameters

ITEM	DC400T
Clamping Force	4000KN
Clamping Stroke	550mm
Ejecting Force	265KN
Ejection Stroke	125mm
Mold thickness	250-700mm
Platen Size (W*H)	1050x1050mm
Tie bar spacing(W*H)	700x700mm
Tie bar Diameter	130mm
Injection Force	405KN
Injection Stroke	570mm
Plunger diameter	60/70/80mm
Shot Weight (Aluminum)	3.0/4.1/5.1Kg
Shot Weight/Mg	2.2/2.9/3.7Kg
Casting Pressure (Intensify)	145/106/82Mpa
Injection Position	0.-200mm
Launch distance of Injection Plunger	200mm
Shot chamber flange diameter	110mm
Shot flange protruding plate heigh	10mm
Motor Power	22KW
System Working pressure	15Mpa
Oil Tank Capacity	900L
Weight of Machine	17Ton
Size of Machine	6.8*1.7*2.9m

Core Competitiveness
1.Better quality and good marketing team
2.Production
3.Testing equipment
4.layout of sales outlets
5.rapid response to after-sales service
High Performance Cold Chamber Die Casting Machine DC400H:
Low-speed stage ; it can be accurately controlled to avoid the air involved in gas accumulation.
High speed stage ; can quickly reach high speed, effectively control the flling time and casting molding effect.
pressure-boosting stage : the pressurization speed; speed can be changed according to the process to strengthen the casting density without causing deformation.
