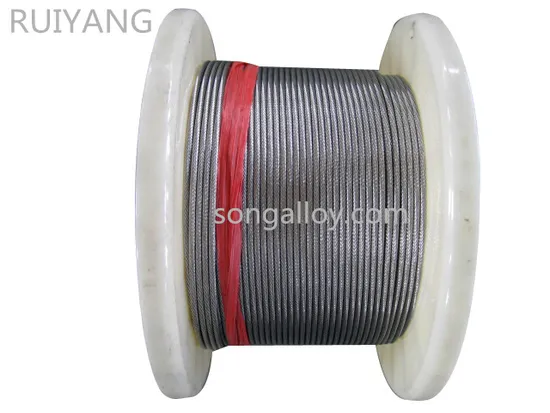

1*19 Stainless Steel Wire Rope in Metal Wire AISI304
| US$68.00-350.00 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
1*19
Material
Stainless Steel Wire
Cross Sectional Shape
Round
Application
Construction Wire Mesh, Protecting Mesh, Fence Mesh, Decorative Mesh, Screen, Gabion Mesh, Window Curtain, Barbecue Wire Mesh, Filter, Cages
Type
Wire Rope
Surface Treatment
Bright and Clean
Metal Wire Drawing
Cold Drawing
Status
Soft State
Thickness
Metal Fiber
Condition
Cold Drawing
Standard
AISI, ASTM, DIN, En, GB, JIS
Lay
Rhrl Rhol Lhrl Lhol
Length
305/610/500/1000m/Reel or as UR Requirment
Dia
1/32inch-3/8inch
Transport Package
Plastic Spool ,Reel,Bag,Drum and Carton,According
Specification
304, 316, 201, 904L, 2520, 2205
Trademark
RUIYANG
Origin
Xinghua
HS Code
73121000
Production Capacity
500tons Per Month
Product Description
Specification for 1*19 stainless steel aircraft cable/wire rope| Con.str | Diameters (inch) | Appro weight. | MIL-W-83410D | |
| Lbs/100 ft | Mill. Breaking Load(Lbs) | |||
| AISI304 | Galvanized | |||
| 1*19 | 1/32 | 0.25 | 185 | 185 |
| 3/64 | 0.55 | 375 | 375 | |
| 1/16 | 0.85 | 500 | 500 | |
| 5/64 | 1.40 | 800 | 800 | |
| 3/32 | 2.00 | 1200 | 1200 | |
| 1/8 | 3.50 | 2100 | 2100 | |
| 9/64 | 4.50 | 2820 | 2820 | |
| 5/32 | 5.50 | 3300 | 3300 | |
| 3/16 | 7.70 | 4700 | 4700 | |
| 1/4 | 13.50 | 8200 | 8200 | |
| 9/32 | 17.00 | 10300 | 10300 | |
| 5/16 | 21.00 | 12500 | 12500 | |
| 3/8 | 30.40 | 17500 | 17500 | |
1),Basic guarantee:
Raw material guarantee,we use the Tsingshan Brand raw material,the quality is good,adding we use the spectrum direct-reading test,our professional workers &equipments,we could guarantee the tubes is right of the clients' needs.
2),Process control:follow the process chart adding our workers' care
3),Inspection& Test
Direct-reading Spectrum Instrument analytic for chemical composition, Yield Strength, Tensile Strength, Elongation, Hardness Test, Flattening Test, Flaring Test, Eddy Current Test, Ultrasonic Test, Hydrostatic Test, Corrosion Test, etc.
Parts of stainless steel rope workshop:
Package & shipping of stainless steel rope
| Material | Stainless steel 304 / 304L / 316 / 316L |
| Brand name | ruiyang |
| Construction | 1 x7,1 x19,1 x37,7 x7,7 x19,6 x19S/W+IWRC,6 x36SW+IWRC,19 x7 etc. |
| Packaging | pvc or wooden reel, pallets, wooden box or customized |
| wooden or plastic spools and craft paper (inner) | |
| stong wooden pallet or according to request(outer) | |
| Standard | DIN , ISO, ASTM ,BS, JIS, NBR, GB, etc |
| Tensile strength | 1470MPa/1570MPa/1670MPa |
| Main application | lifting, fixing, cableway, hanging,supporting, refloatation. haulage, |
