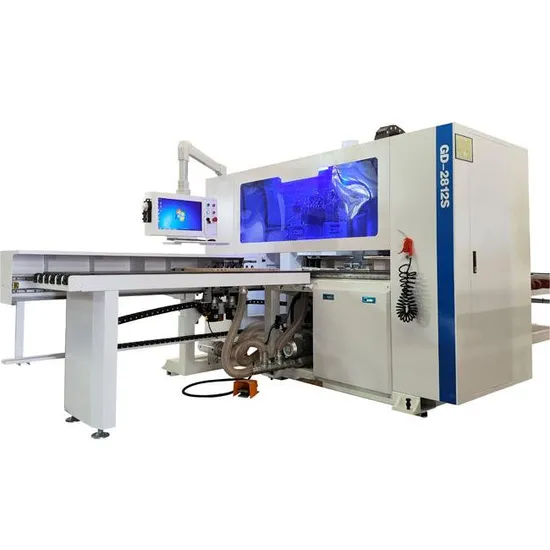

CNC Wood Fully Automatic 6 Six Sides Drilling CNC Boring Machine for Woodworking MDF PVC

Product Description

Model	Name	GD-2412	Configuration
Working travel	X axis(mm)	4500	Workpiece thickness: 10-60mm Workpiece width: 50-1200mm Workpiece length: 150-2800mm
	Y axis(mm)	1200
	Z axis(mm)	140
Drilling package Drill travel L=60mm	Brand	CC
	Power(KW)	22KW
	Number of vertical drills on top	12	Vmax=4000Rpm
	Number of horizontal drills on top	2+2	Vmax=4000Rpm Parallel Y-axis 2 sets Parallel X-axis 2 sets
	Number of lower vertical drills	9
	Number of lower vertical drills diameter:(mm)	Φ35
	Drill spacing(mm)	32
Spindle Motor	Brand	HQD
	Quantity	2
	Power(KW)	3.5
	Speed (Rpm/min)	18000
	Tool size	ER25
Driving system	Mode	Servo drive
	Drive motor	HUICHUAN Absolute value servo
	Drive	HUICHUAN Absolute value drive
Inverter	Brand	HUICHUAN
	Power	3.7KW Adjusted
Control system		Taiwan LNC PC CNC system
Reducer		Japan SHIMPO
Guide		Taiwan Guide
Rack & gear		German WMH Herion
Position		Automatic positioning system
Side tight		Automatic side is tight
Wire		JulySys High-soft cable
Machine body		Heavy-duty bed annealing
Working table	Mode	Air Floating Table Table
	High pressure drum fan (KW)	0.75
Vacuum cleaner	Vacuum cleaner	Upper port:φ150mm; Under port:φ 125mm
Max moving speed	X,U axis(m/min)	120m/min
	Y,W axis(m/min)	80m/min
	Z,A axis(m/min)	30m/min
Voltage		380V 50/60HZ
Total Power		About 20KW
Machine Size(Length*Width*High)		4700*2400*2080mm

Double Boring Heads
More fast speed and more high precision when drilling, save time and save labor force
Special control system with PLC
CAD drawing,CAM import,can directly import opendata formats such as DXFMPRAXMLand easy to operate.
Auto lubrication system
It can oil rack and ball screw,pro long using life of the machine

Air floating table
Effectively prevent the board from being scratched
Unloading Parts
An automatic cross conveyor is installed at the machine exit unloading with workpiece presence sensors.This automatic unloading conveyor allows the integration transfer the machine into automatic lines of the enterprise.

Electric Box
Using the standard components with CE certification, such as Germany Schneider, long service life. Clean wiring design makes repair and maintenance easier

Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.

1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).

5.We accept the ODM,OEM If you have other needs, please let me know
