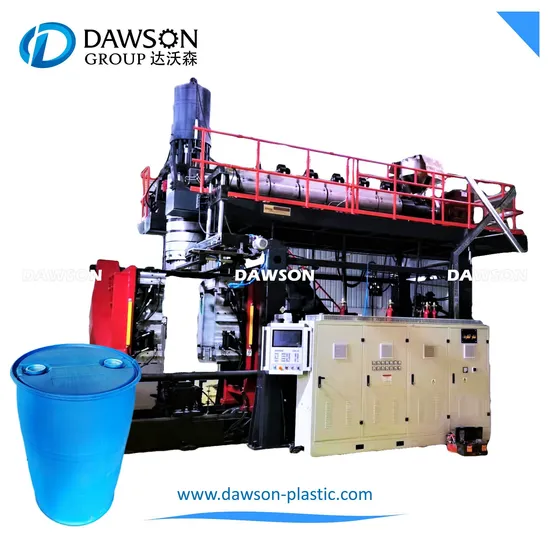

Extrusion Blow Moulding Machine for 120L 160L 220L 250L Drums
| US$90,000.00-170,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DSB120
Raw Material
PET
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
1 Year
Max. Product Volume
300L
Output Capacities
18~25 PCS/H
Screw Diameter
120mm
Screw L/D Ratio
28 L/D
Company Attribute
Manufacturer
Delivery Time
50~100 Days
Machine Lifespan
>20 Years
Voltage
Customer Specified
Condition
New
Blowing Pressure
0.8MPa
Die Heating Segments
5 Zones
Max.Die Diameter
520mm
Mold Stroke
600-1500mm
Max.Size of Mold
1000X1500mm
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Transport Package
Film Packing
Specification
DSB120
Trademark
Dawson
Origin
Zhangjiagang
HS Code
8477301000
Production Capacity
2 Sets/Month
Packaging & Delivery
Package Size
1100.00cm * 700.00cm * 700.00cm
Package Gross Weight
65000.000kg
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Product Description
Certifications
Extrusion blow molding machine ABLD120
| Basic parameters | Suitable material | PE | |
| Max volume | 250L | ||
| Output capacity | 20~25 pcs/h | ||
| Size | 8.6×3.8×5.8 (M) | ||
| Weight | 38 T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw | ∮120mm,L/D ratio 28, 38CrMoALA | Cooling system available | |
| Plasticization | 320~400 Kg/H | HDPE | |
| Heating Zone | 5~6 Aluminum Heater | Automatic heating | |
| Heating power | 36KW/H | ||
| Extrusion Motor | Motor 132kw (380V,50HZ) | ||
| Cooling Fan | 5~6zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | ∮600mm | ||
| Heating zone | 6 Stainless steel heating cycle | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 850~900KN | ||
| Template distance | 850~1850mm | ||
| Max mould size | 1200X1800mm | ||
| Mould material | High grade 50# steel | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | Japanese Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) 22kw | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 1Mpa | ||
| Air displacement | 1.8M3/min | ||
| Electromagnetic valve | AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 18t/h | ||
| Water pressure | 0.3-0.6MPa | ||
