Farm Vegetable Batch Seed Processing Line/Seed Pellet Coating Machine/ Seed Treatment Seed Coater for Carrots /Onions/ Chili /Tomatoes/ Lettuce/Tobacco/Alfalfa

Product Description

Below is lettuce seed pelleting process by machine
Step1 Seeds selecting
Before pelletizing, it is necessary to select seeds of certain quality and morphology.
High quality seeds can improve the quality of pellets and increase the survival rate of pellet formation.
First ,it is necessary to select seeds with high germination rate and good germination power.
Secondly, select according to different types and qualities to ensure stable quality of the produced pellets.
Finally, it is important to select neat and undamaged seeds to ensure smooth processing in the future.
Step2 Seed pellting
According different panting way it usually with different pellet times.
Such as for nursery seeding,pneumatic seeding.

Tomato pellet 5-10 times 3-4mm Lettuce :6-8times 1.9-3.9mm Carrot :6-8times 2.7-3.3mm Celery :5-8 times 1.8-2mm Chili peppers:5-8times 3.5-4 Onion:5-8times Tobacco:30-40 times 1.8mm Carrot: 1-3times chili peppers:2-3times lettuce:1-3times .... for Seed weaving machine using .

Step3 Color coating After finishing pellet process, seed filming coating dressing is according to your request.
Step4 Seed Drying Pelleted seed fished we are advised to drying immediately to keep seed quality ,commercial goods. It looks smooth like jewels,caviar,candy for precision seeding .
Step5 Pelleted VS Original Seed

Small seeds become larger, light seeds become heavier, and irregular seeds become more regular. Effect:for differnet seeding way. Beneficial for seed weaving Air suction seeding Hole tray seedling cultivation Artificial scattering improving seed utilization efficiency and reducing seed planting and labor costs.

Step6 Germination Test

Germination test daily record is making by original seed as well as pelleted seed. We make more than thousands of experimenting to get the recipe how may times it suit for different seeds.

Step7 Growing
Smile shows on farmer face with the sunshine get big harvest.
DIFFERENT TYPES SEED PELELT MACHIEN FOR YOUR REFERENCE

Manuals rage of application in laboratories or householding (Click for more details ) Model NO.:KRT-330 Pellet barrel inner size:330mm Machine composition 1.One set pellet machine 2.Two sets barrel dryer 3.One set small dust collector Weight:130kg Cover an area:2m³ Power requirement:3.6kw Power supply:220V Per batch:300-500g Per batch time:30min

Fully automatic seed pellet machine(Click for more details ) Model NO.:KRT-480 Pellet barrel inner size:480mm Machine composition 1.One set pellet machine 2.one set industry dust collector 3.One set automatic feeder Weight:900kg Cover an area:10m³ Power requirement:6.4kw Power supply:380V Per batch:1000-3000g Per batch time:30min

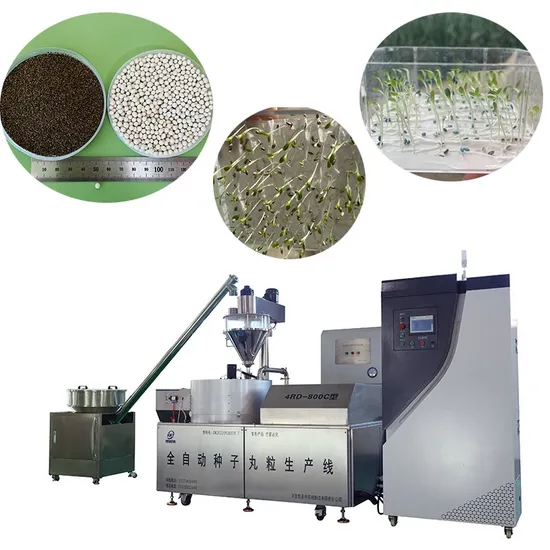

Fully automatic seed pellet machine(Click for more details ) Model NO.:2RD-600 Pellet barrel inner size:600mm Machine composition 1.One set pellet machine 2.One set Simens control cabinet 3.One set powder feeding machine 4.One set industry dust collector Weight:1600kg Cover an area:15m³ Power requirement:15kw Power supply:380V Per batch:1000-6000g Per batch time:30min

Fully automatic seed pellet machine(Click for more details ) Model NO.:4RD-800 Pellet barrel inner size:800mm Machine composition 1.One set pellet machine 2.One set Simens control cabinet 3.One set powder feeding machine 4.One set industry dust collector Weight:1650kg Cover an area:15m³ Power requirement:19kw Power supply:380V Per batch:1000-10000g Per batch time:30min

MACHINE COMPONENTS

FOR KRT -330 SEED PELLET MACHINE USING
	Barrel dryer Two sets		Dust collector One set
FOR KRT -480 SEED PELLET MACHINE USING
	Automatic poeder feeder Power requirement 1.5kw Dimmension:760*680*860mm Weight:105kg Volume:0.5m3		Indusital Dust Collector Power requirement 1.1KW Dimmension:750*800*1300mm Weight:150kg Volume:1m3
FOR 2RD-600 4RD-800 SEED PELLET MACHINE
	Industry pluse dust collector Power requirement:7.5kw Dimmension:900*1350*1950mm Weight:400kg Volume:2.5m3		Simens control cabinet Dimmension:1100*630*2000mn Weight:160kg Volume:1.5m3
	Automatic poeder feeder Power requirement 1.5kw Dimmension:760*680*860mm Weight:105kg Volume:0.5m3	/

OPTIOINAL AUTOMATIC SEED DRYING EQUIPMENT

KRT-HG-880 LOW TEMPERATURE DRYER
	Full set dry container
	Outer size:1160*1100*2200mm Inner size:990*960*1430 Power:12.55kw Power:380v Weight:285kg Per batch:1-30kg Per batch:240min Temperature:Normal degree to 150ºC
	Size:880mm Weight:1.8kg Material:stainless steel Psc:16 sets

KRT-HG-1800 LOW TEMPERATURE DRYER
	Full Set 1.0ne set boiled drying sheet 2.0ne set drying house 3.One set automatic control cabinet
	Boiled Drying Sheet Dimmension:2300*1500*1200mm Weight:200kg Power:15kw Power supply :380v Per batch:1-80kg Per batch:40mmin
	Drying House Outer size:4500*2000*2900mm Inner size:2700*1800*2030mm Weight:440kg Power:25kw
	Automatic Control abinet Dimmension:1100*630*2000mm Weight:160kg Temperature: 5-40 ºC

PACKAGE ACCORDING TO YOUR REQUEST
After granulation, the shape and size of the seed pellets are consistent, with strong fluidity, suitable for different types of mechanized precision sowing: seed weaving machines, plug seedling sowing machines, air suction sowing machines, etc. The precise sowing of one or more seeds per hole has been achieved, saving costs and increasing yields, becoming a new type of scientific and technological application in agriculture!
seed weaving machines, plug seedling sowing machines, air suction sowing machines
(Click here for more information √)

We have different models of seeders for you to choose from, providing you with one-stop service, offering professional agricultural services and developing agricultural plans according to your needs. To achieve the effect of increasing production and income for your agricultural business.
Hebei Kairuote Machinery Manufacturing Co., LTD.,is brother company with Qingdao dashun industrial and trade co.,ltd which located in Laishui County, Baoding City, Hebei Province, China, was founded in 2015, technology and technology is far ahead.
We are committed to research, development, and creation of advanced machinery such as seed pelleters ,hole tray seedling machine and seed weaving machines that contribute to agriculture and provide the best products for our consumers and trading partners from around the world.
We have good products, professional team, quality service and good reputation, "quality first, excellent service" is our philosophy, in the era of opportunities, we are willing to work with customers at home and abroad to develop together, towards a better world stage! With more than thrity invention patents, our company is a modern enterprise specialising in the production of agricultural machinery. We have large production facilities and advanced production equipment, strong technical force and scientific production technology.

Why choose us?
We are committed to research, development, and creation of advanced machinery.
Dose the machine operate easy?
Yes,the machine save up to 99 seed tretment recipes in our own operating systems.what you should do is only pressing start botton.
but it can handle more complex treatment like pelleting with small vegetable seeds.
What's the payment?
By T/T ,60% deposits, the balance before delivery.
When we can delivery?
About 15 days after receipt of deposit,The specific delivery time depends on the items and the quantity of your order.
