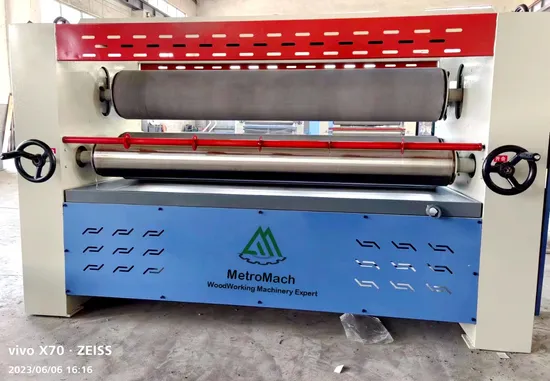

Woodworking Heavy Model 2700mm Plywood Veneer Glue Spreader Machine
| US$3,000.00-6,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XSL4X8-27
Type
Glue Spreader
Automatic
Automatic
Certification
CE, ISO
Spreading Length
2700mm
Spreading Speed
0~34m/Min
Transport Package
Standard Packing
Specification
2000*1000*1250mm
Trademark
METRO MACH/ KINGLEAD
Origin
China, Linyi
HS Code
8501109101
Production Capacity
100set/Month
Product Description
Automatic Woodworking 4FT/8FT Plywood Veneer Glue Spreader MachineProduct Application woodworking glue spreader is one of the main equipments of the plywood production, it is will be after modulation good adhesive evenly coated to the surface veneer of a mechanical equipment.According to the number of plywood glue roller coating machine, can be classified into double roller coating machine, three roller coating machine and four roller coating machine three forms.
Main Features:
1. Applicable to the production of plywood, joinery board, bamboo plywood or man-made board secondary stick a face.
2. Compact structure, strong and durable, convenient maintenance, uniform coating, high efficiency and
province glue, save the production cost.
3. Equipped with scram protection device.
Specifications:
| Length of Spreading roller | 1400mm | 2700mm |
| Diameter of spreading roller | 250mm | 345mm |
| Diameter of squeezing roller | 180mm | 240mm |
| spreading speed | 30m/min | 0~34m/min |
| Machine power | 5.5kw | 5.5kw, speed adjustable |
| machine size | 2000x1000x1250mm | 3300x1200x1300mm |
| machine weight | 1100kgs | 3000kgs |
