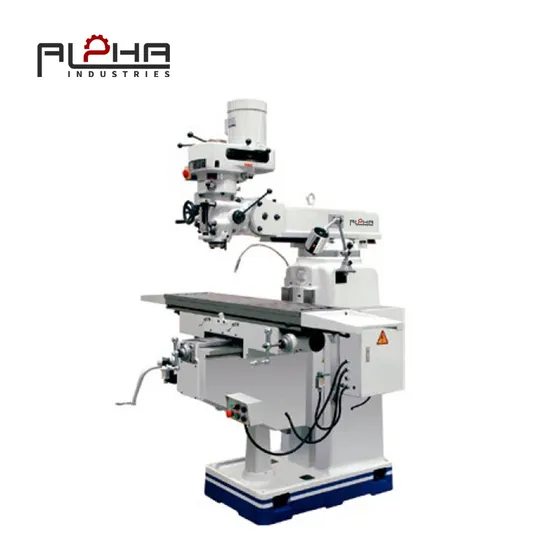

Metal Lathe Durable and Sturdy High Quality M Series Turret Milling Machine

Product Description

Product Parameters

Model No.		M6323A	M6323B	M6325A	M6325B	M6325	M6825cnm
tablesize		9"×42"/9"×49"/ 10"×50"	9"×42"/9"×49"/ 10"×50	10"×50"/ 10"×54"	10"×50"/ 10"×54"	10"×50"/ 10"×54"	10"×50"/ 10"×54"
longitudinal travel		650	840	850	950	850	950
cross travel		305	305	400	400	420	420
vertical travel		400	400	420	420	420	420
T-slot No.and size		3×16	3×16	3×16	3×16	3×16	3×16
ram travel		312	312	470	470	470	470
distance from spindle nose totable surface		15~415	15~415	0~405	0~405	470	470
spindle hole taper		standard:		R8 optional:ISO30/ISO40			standard:R8
spindle travel		127	127	127	127	127	127
spindle speed		standard:shiftgrade 50Hz:65~450060Hz:80~5440
		optional variable speed:65~4500					optional variable speed:65~3750
auto quill feed		three steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
spindle motor		2.25Kw/3HP					3.75Kw/5HP
head tilting		45°					fix
head swivel		90°
dimension of package	one set per case	1400×1476×2030		1516×1550×2080		1516×1550×2080
	two sets per case	1450×1570×2080		1650×1790×2170		1650×1790×2170
	three sets per case	1450×2180×2080		1650×2285×2235		1650×2285×2235
G.W/set		1100Kg	1160Kg	1380Kg	1420Kg	1550Kg	1590Kg

Model No.		MU6325	M6325D	M6330	M6330A	M6333	M6333A
table size		10"×50"/ 10"×54"	10"×50"/ 10"×54"	12"×54"/ 12"×60"	12"×54"/ 12"×60"	13"×54"/ 13"×60"	13"×54"/ 13"×60"
longitudinal travel		770	850950	870	1000	840	1000
cross travel		420	420	380	380	368	368
vertical travel		400	420	430	430	450	450
T-slot No.and size		3×16	3×16	3×16	3×16	3×16	3×16
ram travel		470	470	500	500	500	500
distance from spindle nose to table surface		0~405	0~405	0~435	65-510	0~450	0~450
spindle hole taper		standard:R8 optionatISO30/SO40	standard:ISO40
spindle travel		127	127	127	127	127	127
spindle speed		standard:shiftgrade 50Hz:65~450060Hz:80~5440
		optional variable speed:65~4500	optional variable speed:65~3750
auto quill feed		three steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
spindle motor		2.25Kw/3HP	3.75Kw/5HP
head tilting		45°	45°	45° fix		45°	fix
head swivel		90°
dimension of package	oneset per case	1516×1550×2080		1566×1650×2080		1800×2016×2180
	two sets per case	1650×1790×2170		1720×1800×2175		1800×2200×2180
	three sets per case	1650×2285×2235
G.W/set		165OKg	159OKg	170OKg	1750Kg	230OKg	2350Kg

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
