Plastics Mouldings, Purging/Lump, Profiles, Films Single Shaft Shredder

Product Description

Plastics Mouldings, Purging/Lump, Profiles, Films Single Shaft Shredder

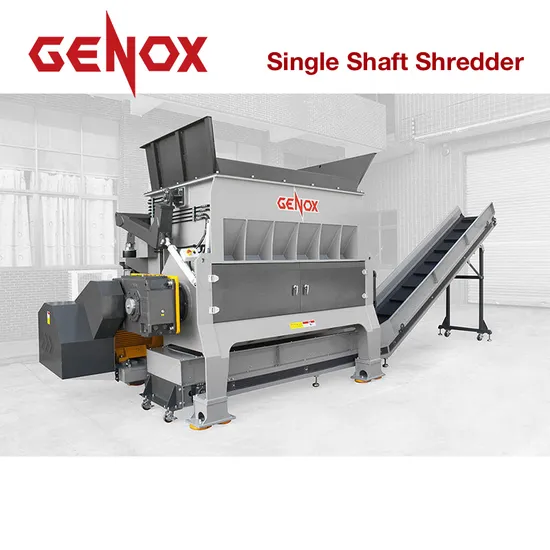

Product DescriptionGENOX Single Shaft Shredders KING KONG Series Single Shaft Shredders are heavy duty size reduction machines suitable for processing a wide range of materials. These shredders are ideal for the
size reduction of flexible and/or medium hardness hollow products in bales. The fast
acting, PLC controlled swing pusher automatically forces material to the rotor according
to motor loading which maximizes material throughput. Machine capacities typically range
between1, 500kg/hr 9, 000kg/hr+ depending on the model, material type and application
as below:· Plastics Mouldings, Purgings/Lump, Profiles, Films etc.· Paper & Cardboard Confidential Documents, Packaging Materials etc.· Copper Cable Household, Telecoms and Industrial Cables including S. W. A· Aluminum Used Beverage Cans (UBC's), Swarf, Cables etc.· Textiles Carpet (Rolls & Tiles), Garments etc.· Security Destruction Counterfeit Items, Faulty Goods, Out of Date Stock etc.· Foam Production Waste etc.· Mixed Household & Commercial Waste RDF/SRF Production Specification

Model	K1500
dimension LX W X H(mm)	3600X2200X2600
Hopper inlet LX W(mm)	1900X1400
Discharge height(mm)	440
Ram(mm)	1000
Rotation diameter(mm)	Ø480
Rotor operation length(mm)	1500
Rotation speed(rpm)	80
Screen(mm)	Ø 40
Rotor knives(PCS)	84
Counter knives(PCS)	6
Drive power(Kw)	90/110
Hydraulic power(Kw)	7.5
Hopper volume(L)	2650
Weight(Kg)	Approx12500

Standard Features · Energy Efficient + Maximum Cutting Force & Productivity· Shock Absorbing Gearbox reduces Stress on Drive Components· Rotor Knives can be rotated and used on several edges before replacement.· Quick Change Screens for accurate particle size control· Swing RAM Pusher with exchangeable PU Slides· Rotor Quick Access Door on the back side· Twin Speed Hydraulics with integrated air cooler· Stand Alone Electrical Control Panel with Siemens PLC Control System· Tested, Approved and Certified to the applicable CE safety standardsDetailed PhotosCompany ProfileFAQ 1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
