China-Made Industrial Coffee Powder Mixer Food-Grade Double Conical Agitator

Product Description

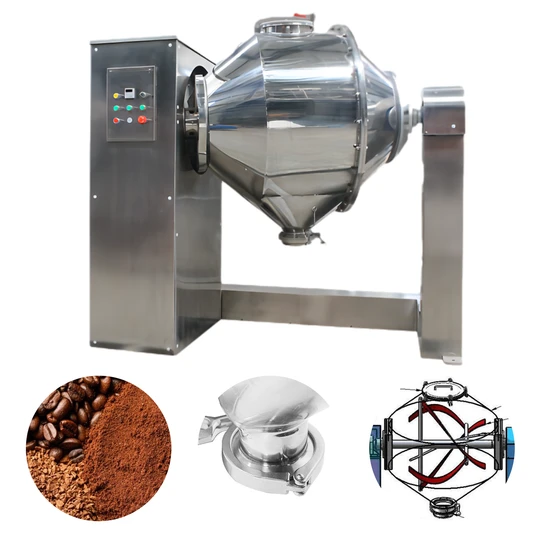

Introducing the Double Cone Mixer which boasts a sophisticated double cone design. This innovative structure allows materials to tumble back and forth inside the drum, promoting exceptional mixing efficiency. By rotating clockwise for several minutes and then reversing, the mixer accelerates material diffusion, flow, and shearing, effectively preventing segregation and ensuring thorough mixing without dead spots.This meticulous process guarantees uniform blending for materials of various sizes and types, making it a versatile solution for diverse mixing needs.
The Double Cone Mixer not only achieves uniform material blending but also significantly reduces mixing time and energy consumption. It maintains high product quality and boosts production efficiency, offering substantial social and economic benefits. This makes the mixer an ideal choice for solid powder grinding and mixing applications.
Product Features
1. Versatility : Perfect for mixing a wide range of materials, including powders, granules, and pastes.
2. Gentle Mixing : Ensures uniform blending without compromising the integrity of delicate ingredients.
3. Efficient Mixing : Achieves thorough and consistent mixing in a relatively short period.
4. Easy-Cleaning : Designed for rapid and comprehensive cleaning between batches, minimizing downtime.
5. Durable Construction : Built from robust materials, ensuring long-term reliability and durability.
6. Wide Application : Extensively used in various industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Device Model	Total Capacity of the Mixing Drum	Filling Coefficient	Motor Power	Overall Dimensions	Installed Weight
	m³	(1/2)	(kW)	(Length x Width x Height) mm	Kg
RX-0.1	0.1	0.5	1.1	1580x650x1350	550
RX-0.2	0.2	0.5	1.5	1800x750x1650	680
RX-0.3	0.3	0.5	2.2	2050x850x1850	800
RX-0.4	0.4	0.5	3	2300x950x1850	1000
RX-0.5	0.5	0.5	3	2400x1050x2100	1200
RX-0.8	0.8	0.5	4	2500x1200x2300	1400
RX-1	1	0.5	4	2800x1500x2500	1800
RX-2	2	0.5	5.5	3400x1600x2700	2100
RX-3	3	0.5	7.5	3500x1680x2900	2400
RX-4	4	0.5	7.5	3600x1800x3100	2600
RX-5	5	0.5	11	3900x1900x3300	2800
RX-6	6	0.5	11	4100x2000x3500	3000
RX-8	8	0.5	15	4300x2200x3700	4000

Product Display Application
The Double Cone Mixer is ideal for industries including powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry.
About Our Company Shijiazhuang Rongxin Science and Technology Co., Ltd.
was established in 2007, with its headquarters in Shijiazhuang, the capital city of Hebei Province. Our expertise lies in the design and provision of material handling automation systems. Recognized as a leader in our field, we have secured numerous patents and accolades, including the prestigious titles of 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Our primary products include dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems. These are widely utilized in the metal materials industry, food processing, chemical industry, pharmaceutical industry, and the new energy sector. Additionally, we operate our own production facility with mature manufacturing lines, ensuring the highest quality of our equipment. Company Certification
Our Customers
