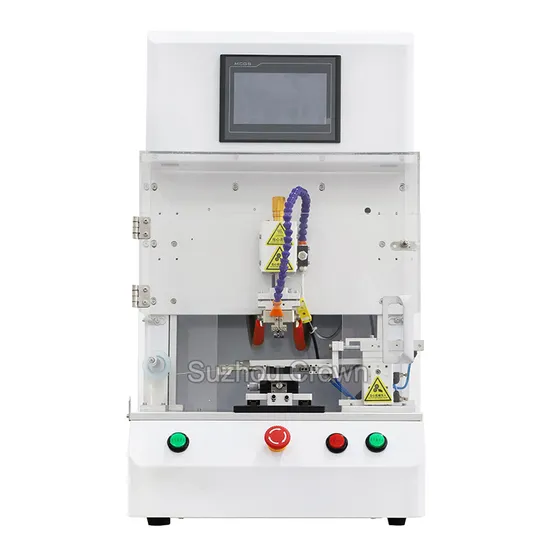

Wl-Hbh High Speed Hot Bar Tin Soldering Machine China
| US$5,500.00-6,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
WL-HBH
Degree of Innovation
Innovative
Certification
CE
Power Supply
220/110V, 50/60Hz
Power
2000W
Voltage
220V, 50Hz
Temperature
50-600degree
Heating Stage
1-4 Stages
Hot Head Cooling Method
Air Cooling
Indenter Accuracy
±0.03mm
Temperature Accuracy
±5ºC
Z-Axis Motion
Screw Drive
Z-Axis Travel
50mm
Drawing Type Automatic Tin Feeding
Cylinder Driven
Dimension
450X560X850mm
Weight
80kg
Transport Package
Wooden Case
Specification
56*68*62cm
Trademark
Crown
Origin
China, Jiangsu
HS Code
8465960000
Packaging & Delivery
Package Size
45.00cm * 56.00cm * 85.00cm
Package Gross Weight
80.000kg
Product Description
WL-HBH Wire Connector PCB Hot Bar Tin Soldering MachineIntrodution:
The hot bar soldering machine is mainly suitable for the hot bar soldering machine process between high-density Lvds, FPC, FFC, ACF, TAB, ultra-fine coaxial lines, wires and PCBs, and connectors. ○ Adopt PLC control system, pulse heating method, and cooperate with various alloy indenter(Titanium or molybdenum alloy indenter), accurate temperature control.
○ Touch screen display input, real-time temperature curve display, and all parameter setting browsing is simple and intuitive.
○ Power adaptive adjustment, the whole machine has leakage protection function, safe and reliable.
○ Using motor for pressurization, the welding position can be adjusted accurately, and the solder joints will be full and bright.
○ The platform can be used to pick and place materials, with a longitudinal stroke of 50MM, which can be customized according to needs.
Technique parameter:Features:
| Model | WL-HBH |
| Rated voltage | 220V, 50Hz |
| Temperature setting range | 50-600ºC |
| Heating stage | 1-4 stages |
| Hot head cooling method | air cooling |
| Indenter accuracy | ±0.03mm |
| Temperature accuracy | ±5ºC |
| Z-axis motion | screw drive |
| Z-axis travel | 50mm |
| Drawing type automatic tin feeding | cylinder driven |
| Dimensions | 450x560x850mm (width x length x height ) |
| Weight | 80KG |
| Heating power | 2000W |
Machine processing samples:
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden
FAQ:
| 1.How to order? |
| Please contact my Email for much more details, you can place order with us directly or through ****** online transcation after confirmation. |
| 2.What's your payment terms? |
| We accept trade assurance order, T/T,L/C, western union, Paypal etc. |
| 3.How long does the production time? |
| Generally 3~7 days, if there's customized model or other request will be adjusted. |
| 4.How do you packaged the products? |
| Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases. |
| 5.What can you provide for us? |
| Our service We provide: · Best products and factory price. · On-time delivery and the shortest delivery time. · 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery. · OEM and customized service. · User manuals will go with relative machines. · QC: All products will be checked before delivery. · Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers · Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. · Operation Guidance: If you have any problem with operation, please feel free to contact us. |
Company information:
Certificate:
Contact:
Pls contact Suzhou Crown for price inquiry or any other questions/doubt.
