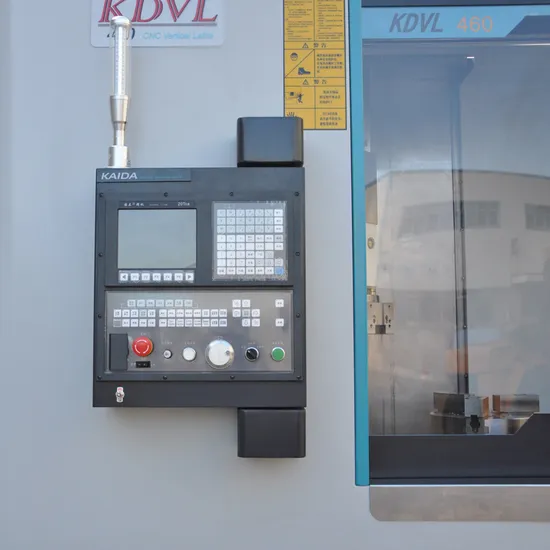

Kd Single-Tool Holder Automatic Heavy Duty Lathe Machine
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
(KDVL460L)
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing
530mm
Max Cutting Dia
500mm
Spindle Nose
A2-8
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
60 Sets/ Year
Product Description
KD Single-tool Holder Automatic Heavy Duty Lathe Machine Product DescriptionProduct Specifications
| MODELS | KDVL320 | KDVL460 | KDVL600 |
| CAPACITY | | | |
| Max. cutting diameter for disc parts | Ф320 mm | Ф500 mm | Ф600 mm |
| Max. cutting diameter for axle parts | Ф320 mm | Ф460 mm | Ф600 mm |
| Max. height of turning | 420 mm | 430 mm | 600 mm |
| SPINDLE | | | |
| Spindle nose | A2-6 | A2-8 | A2-8 |
| Front spindle bearing inner diameter | Ф100 mm | Ф120 mm | Ф140 mm |
| Spindle speed range | 100-2800 rpm | 100-2000 rpm | 100-2000 rpm |
| Steps of spindle speed | Variable | Variable | Variable |
| Chuck diameter | 10″ | 12″ | 18″ |
| TRAVEL | | | |
| X axis | X: -50; +170mm | X: -50; +250mm | X: -30; +300mm |
| Z axis | 450 mm | 450 mm | 600 mm |
| FEED | | | |
| Rapid feed of X axis | 20 m/min | 12 m/min | 10 m/min |
| Rapid feed of Z axis | 20 m/min | 16 m/min | 12 m/min |
| TOOL POST | | | |
| Type of tool stations | Hydraulic | Hydraulic | Hydraulic |
| Tool number | 8-T | 8-T | 8-T |
| Tool shank size(square) | 25×25 mm | 25×25 mm | 25×25 mm |
| Tool shank size(round) | Ф32 mm | Ф40 mm | Ф40 mm |
| MOTOR | | | |
| Main motor | 7.5/11 kW | 15/18.5 kW | 18.5/22 kW |
| Hydraulic pump motor | 1.5 kW | 1.5 kW | 1.5 kW |
| Coolant pump motor | 200 w | 200 w | 370 w |
| OTHERS | | | |
| Overall dimensions(L×W×H) | 1430×2340×2360 mm | 1590×2670×2545 mm | 2365×2700×3200 mm |
| Net weight | 3500 kg | 4500 kg | 8000 kg |
