Surface Grinding Machine Blade Sharping Machine
| US$6,000.00-19,000.00 | 1 Set (MOQ) |
Basic Info.
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Computerized
Yes
Magnetic Working Table
Yes
Grinding Wheel
White/Black/Diamond
Workers Requirement
1-2
Transport Package
by Strong Wooden Cases.
Specification
Export standard
Trademark
Koten
Origin
China
Production Capacity
30set/Month
Product Description
Samples After Grinding.
Introduction.

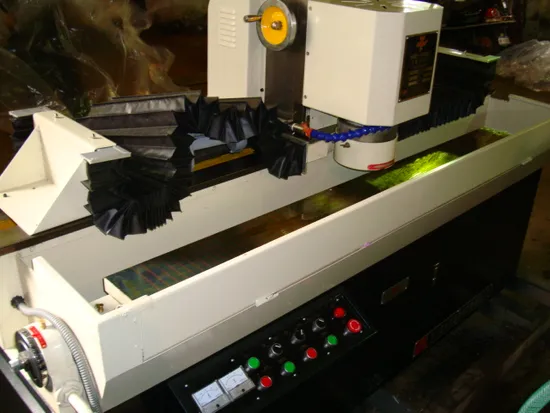

Model MSQ-C knife grinding machine is a grinding machine developed by our factory to meet the requirement of high-tech development. This knife grinding machine integrates both devices of knife sharpening and sharpening double grinding-head.
With the adoption of hydraulic automatic blade-feeding, traveling steepless speed regulation and rolling beeline guide track, it enables to change the angle of knife edge, thoroughly eliminate the waviness on paper-cutting cross section and prolong the using life of knife edge and blade. It is the updated grinding equipment at home and it can offer service to help printing factories to develop towards high-precision cutting level.
Main Specifications.
| No. | Description | Specification & Type | |
| MSQ-1650C | MSQ-2200C | ||
| 1 | Max. grinding length | 1650mm | 2200mm |
| 2 | Grinding Wheel Speed | 1400rpm | |
| 3 | Size of polishing disc | 140mmX6 | |
| 4 | Width of grinding blade | 180mm | |
| 5 | Rotation angle of worktable | 0~± 90° | |
| 6 | Moving speed of grinding-head | 4.5-6.5M/minute | |
| 7 | Max. sunction of magnetic disc | 10T | |
| 8 | Power of grinding motor | 3KW | |
| 9 | Power of pump | 125W | |
| 10 | Grinding wheel attached Specification | ||
| A. Type and Code | White corundum(GB) | ||
| B. Hardness | Soft 3, J(R3) | ||
| C. Granularity | 46#/60# | ||
| D. Size of grinding wheel | 200X100X100 | ||
| 11 | Weight | 1.7T | 2.2T |
| 12 | Outside dimensions (Length x Width x Height ) | 2200x850x1450mm | 2700x850x1500mm |
