Knife Sharpener Machine with High Quality

Product Description

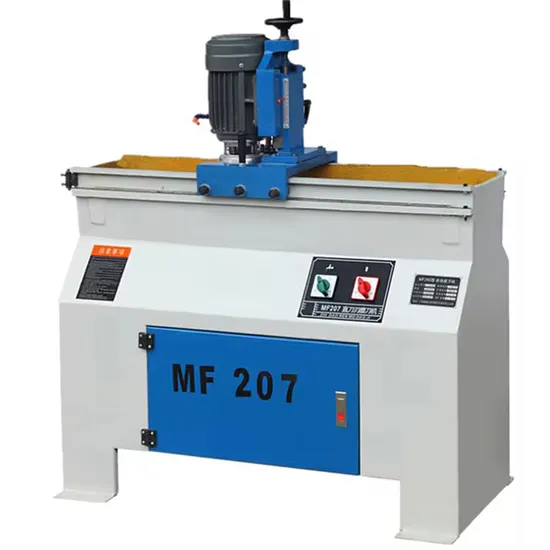

INNOVO-D knife sharpener machine
Specifications
INNOVO-D knife sharpener machine
manufactured by senior engineers
various of oblique knife edge
ideal equipment
low
INNOVO-D knife sharpener machine
It adopts the grinding technology of multifunction and environmental protection knife grinding machine DMSQ-F, and the Germany's advanced technology. It is a high-precision front grinding equipment which is specialized designed for the grinding centers, manufacturers of printing machinery blades, large-scale and high-grade book printing factories.

INNOVO-D knife sharpener machine
The principle of lathe turning of this machine is to ensure a smooth rotation of the machine tool. It is equipped with a high precision calibration equipment, the knife dais of the disk is adjustable 0 - ±90°. It improves the knife-edge's gloss and the angle of the front mouth, it can also extend the life of blade effectively and can fully remove the knife chips.

INNOVO-D knife sharpener machine is one of the most advanced knife grinder equipments at home and abroad. It is deeply welcomed by the grinding centers, manufacturers of printing machinery blades, large-scale and high-grade book printing factories.

INNOVO-D knife sharpener machine
The form of polishing -------------------------------------------------------------------- automatic reciprocating
Maximum front grinding length --------------------------------------------------------1600mm
Working angle of the knife rest --------------------------------------------------------0 - ±90°
Rotation speed of polishing wheel ---------------------------------------------------1500 rev / min
Model of polishing wheel --------------------------------------------------------------- wool wheel
Specification of rag wheel -------------------------------------------------------------Φ120x12xΦ18mm
Speed of reciprocating -----------------------------------------------------------------8m/min
Polishing motor ---------------------------------------------------------------------------YS7124: 0.55KW
Reciprocating motor ---------------------------------------------------------------------YS7124: 0.55KW
Overall dimensions (L x W x H) ------------------------------------------------------3420x1050x1500
Machine net weight --------------------------------------------------------------------- temporary lack of data
INNOVO-D knife sharpener machine

No	Specifications / Model	Maximum front grinding length
	unit	mm
1	1700D	1700
2	2200D	2200
3	2600D	2600
4	3000D	3000
5	3200D	3200

Machine transport and packing
__________________________________________________________________________
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Company:
_____________________________________________________________________

Certificate:
______________________________________________________________________
FAQ:
______________________________________________________________________
Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of hot foil stamping machine and die cutting machine in China over 20 years.
Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.
Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.
Why choose us?
_____________________________________________________________________
1.Our brand "INNOVO" is well-known in our domestic market and over 80 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.
2.Genuine products with excellent quality. Company has always proved the 100% quality.
3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.
4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.
5.Less cost of purchase: We are the manufacturer directly.
6.Attendant customers queries promptly.
