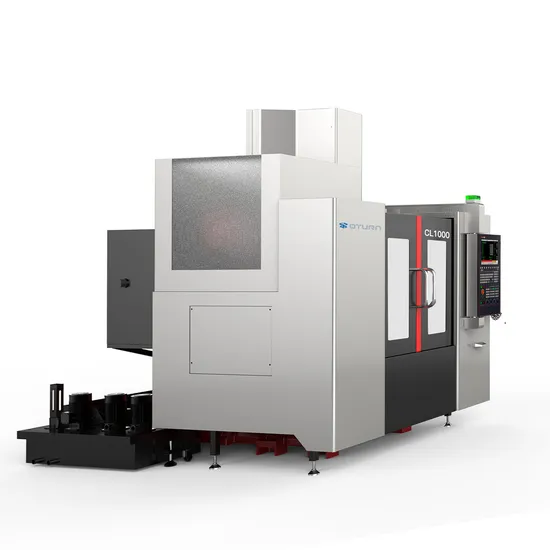

Precision-Controlled Vertical CNC Machine Cl1000 Vmc Milling Center

Product Description

Product Description
High-speed, high-performance high-speed precision vertical machining center CL1000 has the characteristics of high rigidity, high precision and high efficiency machining. The column adopts herringbone design and large span, which can greatly enhance the bending torsional strength of the column; The table adopts a reasonable slide span and does surface quenching, so that the table is evenly stressed and the hardness is improved; The bed adopts trapezoidal section to reduce the center of gravity and improve the torsional strength; The whole machine adopts finite element analysis to design each component to provide the best overall stable performance.
The three-axis rapid displacement is 48 m/min, the T-T tool change time is only 4S, the tool magazine is fully loaded for 24 hours without alarm running machine and the 3-dimensional test of each machine test processing sample passes to ensure the efficient and continuous stability of the machine after leaving the factory. It is suitable for various complex shapes of two, three-dimensional concave and convex models and complex cavities and surfaces, and is also suitable for milling, drilling, expansion, boring, tapping and other processing operations of valves, cams, molds, plates and box parts in the manufacturing industry, and is more suitable for small and medium-sized batch multi-variety processing and production, and can also enter the automatic line for mass production.
Using Fanuc's latest oi-MF PLus system, 10.4-inch LCD display, tool information management, processing simulation, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and fast; The high-speed optical fiber communication mode greatly improves the data processing ability and control performance of the numerical control system, and the program storage capacity is increased to 2M, with Ethernet & editable storage, which facilitates the fast and efficient transmission and online processing of the program.
Product Parameters

Item		unit	Specification
Travel	X/Y/Z axis travel	mm	1000×600×500
	Distance from spindle end face to work table	mm	120-620
	Distance from spindle center to column guide surface	mm	628
Workbench	Workbench (L×W)	mm	1100×500
	T-slot (number of slots - width x pitch)	mm	5-18×100
	maximum load	mm	600
Three axis feed	Rapid displacement of X/Y/Z axis	mm	48/48/48
	Cutting feed rate	mm	0-12000
Spindle	Spindle specification (transmission method)	mm	140/DD
	Spindle taper hole	mm	BT40
	Spindle maximum speed	kg	12000
	Spindle motor power (continuous/S2 30min)	kw	7.5/11
	Spindle motor torque (continuous/S230min)	mm/min	35.8/70
Tool magazine	Tool magazine capacity	mm	24T
	Tool change time (T-T)	s	4
	Maximum tool diameter (full tool / empty tool)	r/min	80/150
Guide	X-axis guide (size/number of slides)		35/2(Roller)
	Y-axis guide (size/number of sliders)		35/2(Roller)
	Z-axis guide (size/number of sliders)		35/2(Roller)
screw	X-axis lead screw	mm	Φ40×16
	Y-axis lead screw	mm	Φ40×16
	Z-axis lead screw	Mm	Φ40×16
Accuracy	positioning/repeatability	mm	±0.005/300
	positioning/repeatability	mm	±0.003/300
Lubrication system	Lubrication unit capacity		1.8
	Oil separator type		Volumetric
Cutting fluid	Water tank Capacity		240
	Cutting pump parameters	mm	0.32Mpa×16L/min
Other	Air demand	mm	≥6
	Air source flow	L	≥0.4
	battery capacity		22.5
	Machine Weight (Comprehensive)	T	6
	Mechanical Dimensions (L×W×H)	mm	2653×3122×2635

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.
