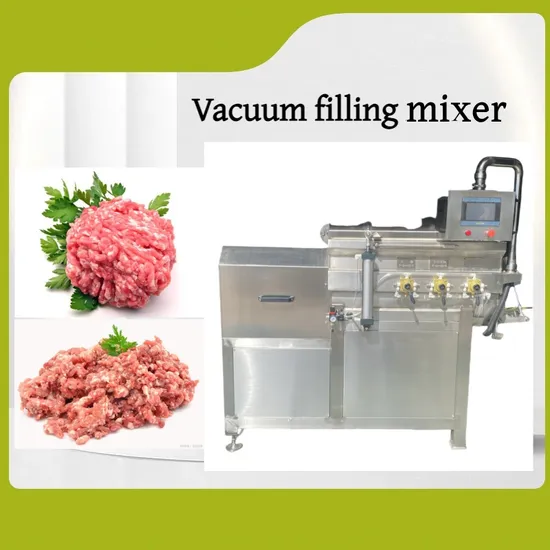

Best Quality Pork Filling Vacuum Mixer

Product Description

Product Description

A filling machine is a commonly used equipment in the food processing industry, especially in the production of fillings. Here is a brief introduction to it:
Structure composition: Usually composed of mixing bucket, mixing blade, motor, transmission device, frame and other parts. The mixing bucket is used to hold filling materials, and the blades are driven by a motor to mix and stir the materials. The transmission device ensures effective power transmission, and the frame plays a supporting and fixing role.
Working principle: The mixing blade is driven by a motor to rotate inside the mixing bucket. The blade pushes the filling material to make circular and axial movements, causing various materials to continuously roll up and down, left and right, and back and forth inside the bucket, thus achieving uniform mixing.
Main use: It is widely used for mixing various fillings such as dumplings, steamed stuffed buns, Wonton, and also for making salad, sauce, pastry fillings, etc. It can quickly and evenly mix meat, vegetables, spices and other ingredients together.
Advantages of the equipment: It can greatly improve the efficiency and quality of filling production, ensure the consistency of filling taste and texture, reduce the labor intensity of manual filling, and has the characteristics of easy operation, convenient cleaning, safety and reliability, which can meet the production needs of catering enterprises and food processing factories of different scales.
Product Parameters

Model	Volume(L)	Power(kw)	Reference feeding quantity(kg)	External dimensions(mm)
SZJB-50	50	2.5	30	1200*560*840
SZJB-100	100	4	70	1300*600*1100
SZJB-200	200	4	160	1500*760*1150
SZJB-300	300	5	260	1900*1100*1500
SZJB-500	500	9.5	450	2200*1100*1500
SZJB-750	750	9.5	600	2200*1100*1500
SZJB-1200	1200	12.5	900	2480*1450*1780
SZJB-2000	2000	25	1500	3000*1800*2000
SZJB-2500	2500	33	2000	3500*2000*2000

There are various models of vacuum filling machines, with the smallest model being SZJB-50 and the largest model being SZJB-2500. In addition, models can be customized according to the feeding amount.
Product Details
A filling machine usually consists of the following parts:
Power section
Motor: provides power for the filling machine, allowing the mixing shaft and blades to rotate and work, and is the power source of the filling machine.
Reducer: Connecting the motor and transmission device, it can reduce the high speed of the motor to a speed suitable for mixing, while increasing the torque to make the mixing more powerful.
Transmission part
Chain and sprocket or gear: transmits the power of the motor to the mixing shaft, allowing the mixing shaft to rotate at a set speed and direction. Chain drive has the characteristics of smooth transmission and low noise; Gear transmission has high transmission accuracy and large torque transmission.
Coupling: used to connect components such as motors, reducers, and mixing shafts, ensuring the stability and reliability of power transmission, and also providing a certain buffering and shock-absorbing effect.
Mixing section
Mixing shaft: usually made of stainless steel or other materials, it is a component that installs mixing blades and rotates under the drive of power, driving the blades to mix the filling.
Stirring blade: There are various shapes and sizes, commonly including propeller type, blade type, anchor type, etc., which can be selected according to different mixing needs. Its function is to directly stir, flip, and mix the filling.
Control switch: used to control the start, stop, forward and reverse rotation, and speed regulation of the filling machine, usually including button switches, knob switches, etc.
Electrical control system: It can achieve automatic control of the filling machine, such as setting parameters such as mixing time, speed, forward and reverse rotation time. Some also have overload protection, leakage protection and other functions to ensure the safe operation of the equipment.

Certifications
In the current context of close global trade, the CE certificate is the key for foreign trade export equipment to enter the international market. Our company's equipment has obtained this certificate with high quality. After strict quality control, it has been exported to countries such as the United States, Canada, and Malaysia. The equipment has excellent performance, has received favorable reviews locally, and has enhanced the company's international popularity and competitiveness.
Packaging & Shipping
For foreign trade export enterprises, the shipping logistics usually involves sea freight or land freight. After receiving a customer's order, we will collect an advance payment of 30% and promptly arrange for our staff to start production. Before shipping, we will send the equipment inspection video to the customer for communication. After the customer confirms that everything is in order, we will collect the remaining payment. Once we receive the full payment, we will contact the freight forwarder to arrange for the shipment.


Company Profile

Zhucheng Shuke Machinery Company is namely Zhucheng Shuke Machinery Technology Co., Ltd. Company Overview: It is a professional manufacturer of food processing machinery located in Huangtuan Industrial Park, Mizhou Sub - district, Zhucheng City, Weifang City, Shandong Province.Its products include chopping machines, meat mincers, ball - making machines, pulp - making machines, vacuum packaging machines, etc.
FAQ

Q1: Are you a factory or a trading company?A: We are a factory with 15 years of professional experience in Shandong.Q2: Do you provide free samples?A: We do not provide sample services, samples are machines. You can communicate the details with me before purchasingQ3: When is the delivery time for the samples?A: Most of our equipment is in stock, and stock is usually shipped within 10 days. If there are special designs or requirements, they will be determined based on the discussion results.Q4: Do you have after-sales support?A: Yes, we will maintain close contact during our cooperation.Provide technical advice as always when needed. There is no time limit. Video recommendations for usage and instructions should also be provided along with the goods during shipment.In fact, our products have received good five-star reviews from customers after one or even two years of use.Q5: What payment methods do you accept?A: Wire transfer, with a 30% deposit paid at the time of the order and a 70% balance paid before shipment.
