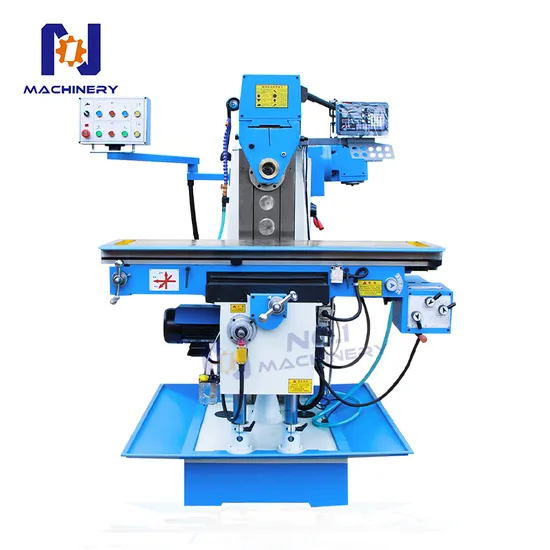

High Precision Universal Vertical Milling Machine X6036 Horizontal CNC Milling Machine

Product Description

Product Description

Standard configuration:
X axis automatic (6028)
X/Y axis automatic (6032,6036)
Electric lift of z axis (6032,6036)
Optional configuration:
Vertical milling head
Three-axis digital display
Electronic oil pump
Universal dividing head
Custom tool holder Product Parameters

PARAMETER ITEM	UNIT	X6028	X6032	X6036
Working desk size	mm	1200/1500x280	1500x320	1500x360
Number of T-slots		3	3	3
Workbench trip	mm	680/280/350	1000x320x400	1000/360/400
Spindle hole taper		7:24/ISO40	7:24/ISO40	7:24/ISO50
Spindle speed range	rpm	40-1300(12 steps)	40-1300(12 steps)	60-1800(12 steps)
Worktable feed speed	mm/min	15-370 (8 steps)	15-370 (8 steps)	15-370 (8 steps)
Workbench down stroke	mm	500	500	500
Worktable vertical lifting speed	mm/min	560	560	560
Spindle center to vertical rail surface distance	mm	300	320	320
Vertical shaft end to table distance	mm	50-550	50-550	50-550
Motor Power	kw	3	3	4
Dimensions	mm	1460x1500x1900	1760x1500x1900	2220x1790x1980
Machine weight	kg	1500	2100	2400/2500

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
