Ramsey Pull Pull-Wire Emergency Stop Pull Rope Belt Conveyor Sps-2D Switch

Product Description

Pull on the rope switch SPS - 2D
Used for emergency stop conveyor
Pull on the rope switch is usually installed on both sides of the conveyor, used for emergency stop device.In order to protect the safety of the personnel or equipment
The wire rope end of the rope switch fixed on a fixed anchor bolt, the other end fixed on the switch arm, every three meters with a perforated wire rope bolt support, switch to the distance protection should not be more than 24 m.The distance between the two switch should not be more than 48 meters.When prompted switch arm force rod rotation to the alarm position, touch the micro switch and lock.Until the manual reset.Standard rope switch protection grade reaches IP65. Suitable for indoor and outdoor installation.Surface after special treatment can be used in the acid, alkali, salt area.Nickel plating for the corrosive surface area.
Features:

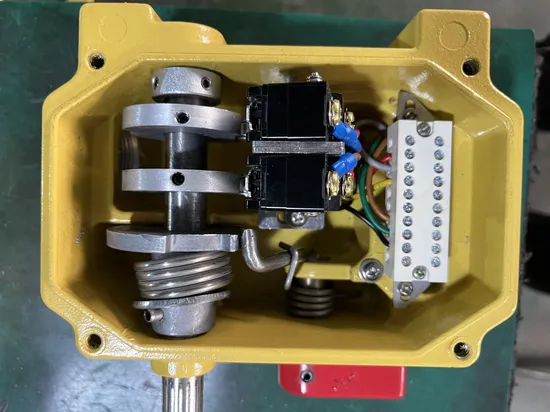

General internal structure design, two-way touches.Switch can be installed in the middle of the conveyor position can also be installed on both ends.
General installation design, can be installed on the top of the conveyor longitudinal beam can also be installed in the side.
Solid aluminum shell.Protection grade reaches IP65.
Wiring and adjust convenience simple, don't have to remove the tie rod can work.
Compact structure design.
Bold black arm foil yellow or silver shell, distinguishing alarm or normal state.
Provide complete accessories.Including rope, wire rope clip and anchor support bolt.
Leverage reset manually.
Technical specifications:
Two SPDT switch contact rating, 10 a / 500 v
Method 20 to alarm Angle
IP65 protection grade
Reaction of 5-7 kg
Switch the maximum distance between 48 meters (level), 36 meters (tilt), every 3 meters cable has a support.
Weight 3.8 kg
Optional:
Mounting bracket, for large conveyor
Internal proximity switch instead of micro switch
Special surface treatment, surface plating nickel and stainless steel actuating rod
Address of the encoder
The lamp
A complete set of fixed accessories: including cable, chuck, retainer, the light bulb
Scope of application:
Conventional belt conveyor
Reciprocating conveyor
The skirt side feeding conveyor
Bucket conveyor
Packaging production line
Stacking, picking system
The ship handling system
The level of feeder
