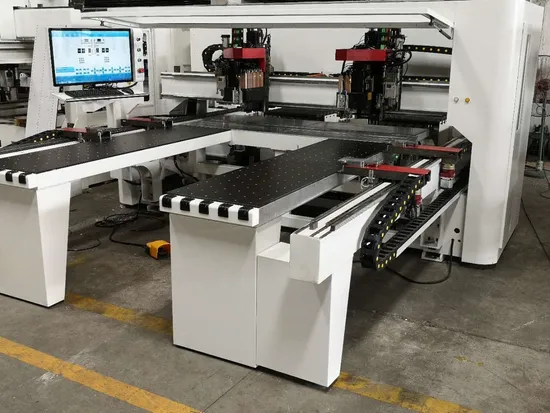

Hicas Hc2612ss Woodworking Automatic Wood 6 Sided Boring Machine for Sale

Product Description

Product Description
Working process Code scanning → plate setting → startup → automatic completion of hole and groove processing (six sides) Characteristic It is composed of customer order splitting software and our company's full-automatic CNC drilling and slotting machine. Instead of manual drilling and slotting, the machine adopts the full data processing mode to optimize the processing with the customer's software data, so that the plates can be processed normally on the equipment. The equipment has two side stations for plate laying and processing at the same time, and can also be divided into two CNC drills. The workpieces at the left and right stations can also be processed in a 4-drill package cycle. The equipment does not need to stop and wait, and the operator does not need to wait, so as to fully achieve the highest efficiency of the equipment. The machine adopts the scanning bar code processing mode, and the left and right stations can scan the code circularly or the left and right stations can scan the code in batches. No manual calculation is required, and the work is carried out according to the diagram. It is easy to operate, stable, high efficiency, safe, high precision and long service life. Product Parameters

Max positioning speed
X axis ,A axis (Clamp)	130m/min	Clamp movement
Y axis , B axis (drilling head left and right )	95m/min	Left and right movement of drilling head
Z aixs, C axis (drilling head up and down)	35m/min	Going up and down of drilling head
V axis (side fence)	60m/min	Side fence
Up and down drilling combination device
Top drilling group	12 vertical +8 horizontal *2units
Bottom drilling group	9 vertical*2units
Drilling group motor power	2.2kw(top drilling ) +2.2kw (bottom drilling)
Milling spindle
Spindle model	Er32
Shank diameter	φ10mm
Motor power	3.7kw (top spindle)*4pcs
Spindle speed	18000rpm
Panel size
Min panel width	35mm
Max panel width	1220mm
Panel length	180mm-2800mm
Max panel thickness	50mm
Working table height	920mm
Total power	41.5kw
Voltage	380V 50hz 3phase
Air pressure	0.6-0.8mpa
Weight	5500kg
Dimension	6200*3825*2150mm

Detailed Photos

Control System

It adopts 32-inch touchable color screen to control and display YNCNC numerical control system and man-machine input interface, which is quick and convenient to operate; it can be seamlessly connected according to the user's production design management software file format, without independent input of drilling data, scanning code to achieve fast processing. The operation is safe and reliable, the interface is simple and friendly, the drilling plan can be edited and managed, the drilling task can be compiled and managed, and the actual operation can be simulated and executed.

This machine can realize up and down simultaneous fighting to ensure the concentricity and efficiency of processing. The clamping position can pull the groove up and down at the same time, and can realize single clamping to process short plates
This machine adopts Taiwan Pudeng drill bag and Yadeke cylinder. The table top is chrome plated, which can be moved to improve the processing quality
Eelctrical device: Good brands and high performance servo motor
Controller system:Beckhoff, Germany
Electrical parts:Schneider, French
And so on
Rack and guide
Taiwan YYC rack and,Taiwan Hiwin precision linear guide
Company Profile
1. We have our own woodworking machinery factory.
2. 8 years exportation experience, have customers in more than 40 countries.
3. Engineer team with +20 years experience.
4. Diamond supplier in made-in-china.
5. Our services
Pre-sales service: To provide customers with the best on-site solutions with the best products and technologies. In order to better serve our customers, we have established a complete pre-sales service support system to provide the most suitable models according to customer needs. Equipment and solutions, together with customers to discuss and improve the customer's production process, processing technology problems.
After-sales service: HICAS after-sales customer service team, responsive. We can solve various problems for customers in the shortest time.
Tracking service: We track and record the equipment purchased by each customer and return to it regularly. Understand customer usage and improve feedback and feedback, and strive to be responsive to every customer. Solve every sanding problem.
6.Our products are widely sold in made-in-china.
7.Customer feedbacks
We are looking for Good customers like you! And Distributor or Agents Wanted! ! !
FAQ
1. Do you offer installation?Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1) Technical support by phone, email or WhatsApp/Skype around the clock.
2) Friendly English version manual and operation video.
3) Engineer available to service machinery overseas.
5. Can you customized the machine?
Our machines can be customized made according to buyers' request.
6. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like edge banding machine, CNC router, drilling machine, saw machine,roller coater, spraying machine, membrane press can be provided as well.
7. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian.etc.
