10t/H Cattle Chicken Animal Feed Poultry Feed Processing Machine Pellet Production Line Pellet Feed Machine for Sale

Product Description

New Stype China Factory Directly Sale Feed Processing Machine for Animal Feed
Product Description
Introduction - Feed Pellet Machine :
CM Series Ring Mould Pellet Mill is the main machine of making granular fodder,it can be used to make various roughage and refined fodder in livestock farm and feed mill,and also used for checmical industry and industry.
Features of Feed Pellet Mill :
(1)Drive mechanism adopts high strength belt,with steady running and low noise;
(2)Drive mechanism adopts high quality bearing to ensure high speed and stable ooperation;
(3)Feeding part is equipped with a permanent magnet to remove metallic impurities;this prolongs the service life of main parts and meanwhile
reduce the use of auxiliary equipment.
Product Parameters
1). CM-A Seires Feed Processing Machine

Parameter/Model	CM-15A	CM-20A	CM-25A
Output(kg/h)	100-200	500-700	1000-1200
Inside diameter of ring die (mm)	150	200	250
Pellet diameter(mm)	1.5/2/2.5/3/3.5/4/5/6/8	1.5/2/2.5/3/3.5/4/5/6/8	1.5/2/2.5/3/3.5/4/5/6/8
Weight(Kgs)	175	500	625

2). CM-B Series Feed Pelelet Machine

Model No.	CM-20B	CM-25B	CM-30B
Output(kg/h)	500-700	1000-1500	1500-2000
Power(kw)	11	22	30
Feeding moder(kw)	0.75	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside dimeter of ring die(mm)	200	250	304
Pellet diemeter(mm)	1.5/2/2.5/3/3.5/4/5/6/8
Dimension(m)	1.1*1.5*1.52	1.1*1.15*1.25	1.1*1.15*1.25
Weight(kgs)	580	710	960

3). SZLH Series Feed Pellet Machine

Model	Main power(kw)	Out-put(t/h)	Power of Conditioner(kw)	Power of screw feeder(kw)	In-side of rind die(mm)
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Final product
Final different size feed pellet used feeding for chicken, cattle, sheep, rabbit, fish, pig etd different animals.

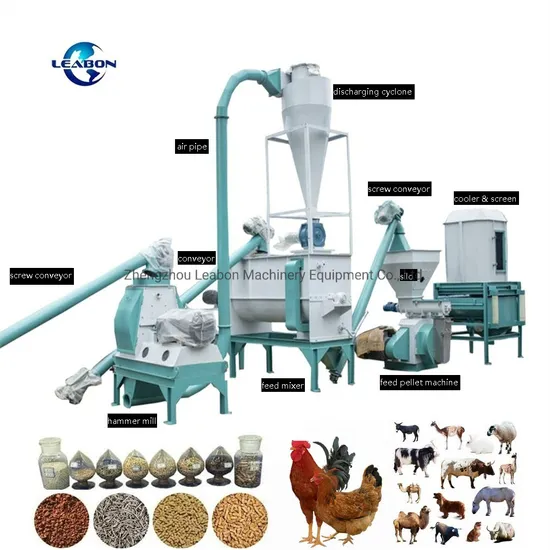

Farm Use Animal Feed Pellet Production Line
