90m3/H Automatic Concrete Batching Plant
Basic Info.
Model NO.
sd7
Machining Process
Vibrating Mixing
Structure
Spiral Type
Productivity
90m3/H
Feeding Height
1400mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Air Compressor
3kw
Electromagnetism Valve
1
Drawbar Pin
1
Batching Control Meter
Made in China
Circuit Breaker
Delixi
Connecting Cable and Accessories
Made in China
Cement Silo
50t/100t/150t.Customized
Hoisting Mixer System
Discharge Height 4.1m
Aggregate Hoisting and Measuring System
Made in China
Transport Package
Naked in Container
Specification
CE
Trademark
Super-above
Origin
Jiangsu, China
HS Code
8474310000
Production Capacity
5000PC/Year
Product Description

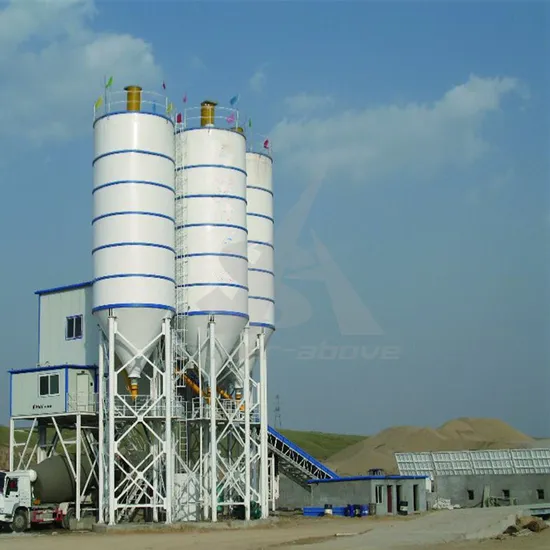

90 ready mixed stationary concrete batching plantstationary concrete batching plant is one of the best-selling products of CamelWay. stationaryconcrete batching plant mainly
includes mixer JS1000 ,batching machine,conveying system,
weighing system etc.High wear-resistant alloy twin shaft mixer is durable.Belt filling is high effciency .With theoretical
productivity 60m3/h, stationary concrete batching plant is applied to roads, airports,ports project and concrete production.
Features: 1,JS1500 with two kinds reducers: cycloidal reducer and planetary reducer; 2,High efficiency with 90m3/h productivity; 3,Stable pneumatic system; 4,Easy-operating with imported SCHNEIDER and SIEMENS components in PLC+PC model; 5,Well-designed electrical system; 6,High-resistant manganese steel alloys; 7,Adjustable hydraulic discharging door;
Technical parameters
| Product Name | HZS90 Continouos Concrete Batching Plant |
| Application | Building,Road,Railway,Bridge etc.Construction Project |
| Productivity (m3 /h ) | 90 |
| Mix Recycle Time(s) | 60 |
| Mixer Model | JS1500 Concrete Mixer Machine |
| Batching Machine Model | PLD2400 Batching Machine |
| Discharging Way | Auto Hydraulic |
| Aggregate Feeding Method | Belt Conveyor |
| Control System | Centralized Computer Control |
| Cement Silo | 100T/200T/As Requirement |
| Product Keywords | 90 cubic meters hzs concrete mixing plant |
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS90 | HZS120 | HZS180 | |
| Capacity (m3/h) | 25 | 35 | 50 | 60 | 90 | 120 | 180 | |
| Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS2000 | JS3000 | |
| Aggregate batcher | PLD1200 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD3200 | PLD4800 | |
| Discharge height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 4 | 4 | |
| Cycle time (s) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Weighing accuracy | Aggregate | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Cement | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |
| Water | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | |
| Additive | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |
