Compact Non-Presssurized Glass Vacuum Tube Solar Hot Water Heater with Filling Float Valve Assistant Tank

Compact Non-Presssurized Glass Vacuum Tube Solar Hot Water Heater with Filling Float Valve Assistant Tank

Negotiable 1 Piece (MOQ)

Basic Info.

Pressure
Unpressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Collector
out Shell
201 Stainless Steel
Inner Shell
304-2b Stainless Steel 0.5mm
Insulation
Polyuranthe
Heat Presevation
72hrs
Fill Valve Tank
5L
Transport Package
Carton
Specification
200L
Origin
China
HS Code
841912
Production Capacity
72000 Set Annual

Product Description

Product Description

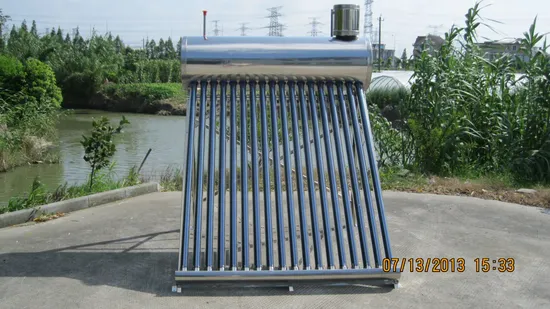

High quality anti-rust solar water heater adopt all anti-rust material .It works in the way based on natural circulation. Solar collector is down the water tank, cold water in tube rises up to the tank and exchange the hot water with cold water. As water in the vacuum tubes is heated by solar, it rises naturally into the tank. The small tank designed on top of main tank helps filling water automatically.
Detailed Photos
Our AdvantagesTank capacity: full 160L water volumeCollector: made of high-quality glass with three target coating. weight in 2kgs higher than market. Heat insulation: high density polyurethane, perfect and smooth performance in apperance. Tank outer shell: stainless steel 201, diameter in 360mm Inner tank shell :thickness in 0.5mm, thicker than market for high quality anti-rust and longer usage. Diameter in 460mmThe holes punched for Silicone sealing are facing outside ,cutting position do not contact with water to avoid any rustTank cover process: rivet up tank cover to main tank with aluminum rivet to avoid any risk on depart offThe fitting welding: Arc-argon technical.screw with anti-rust material :flange type .It is applied for fixing main tank to frame. Contact area between tank and frame is larger than normal screw without flange Our frame:stainless steel 201. strong to against the strong wind.All ports of tank are well considered to meet the demands of customers, they are available for all accessory, special request from customer can be acceptable and customer made after checking by engineer. Remark: accessory optional: assistant filling tank, electric resistant, controller, magnesium bar.
Focus point:
High quality stainless steel solar water heater adopts all anti-rust material. Long lifetime and nice looking are deeply loved by customers. solar water heater with small tank makes filling water easy and convenient.
capacity for optional:Can be large to 500L
common system capacity :100L,200L,250L,300L
Product ParametersVODNP-H460S1 high quality stainless steel series:
Item No.Capacity /LSolar Vacuum TubeApertureContainer Loading Sets
TankTubeSystemTube No.Tube size/mmArea/m220GP40GP40HQ
VODNP-H460S1-10V801010010Φ58 * 18000.65 71 137 168
VODNP-H460S1-12V1001212412Φ58 * 18000.97 67 125 153
VODNP-H460S1-15V1261515615Φ58 * 18000.12 55 103 126
VODNP-H460S1-18V1501818618Φ58 * 18001.46 44 85 104
VODNP-H460S1-20V1602020020Φ58 * 18001.62 40 78 96
VODNP-H460S1-24V2002424824Φ58 * 18001.94 34 68 82
VODNP-H460S1-30V2503031030Φ58 * 18002.43 27 54 65
VODNP-H460S1-36V3003637236Φ58 * 18002.91 19 39 47

Packaging & Shipping
Company ProfileHaining Vod Solar Energy Industry CO.Ltd. is one of solar water heater manufacture focus on solar products and solar solutions for more than 20years. As solar water heater manufacture, we do mainly produce a large different ranges of solar water heater: open loop solar water heater, close loop solar water heater, solar thermal collector ,heat pipe solar collector and customized solar water heater. As a developing and energy saving factory, we supply different energy saving products: air source heat pump, solar pump, solar light, solar pv on-grid and off grid system, solar refrigerator, solar AC and so on.
In order to produce a high-quality solar water heater, we do investigate on large amount on producing machine and skill workers. We adopts 8 location automatic punching machine, arc-argon welding machine, automatically lines for solar manifold ,up and down foaming platform for foaming and other lead technical machines. About 85% workers have more than 10years working experience in solar water heater manufacturing. The professional engineer team is built especially for large scale solar water heating system design and installations. The team offers different solar solutions according to customer's different project request or single products request.
As a responsible solar water heater manufacture, we have a strict quality control in materials and production, we pay the double attention on producing. Even a screw, we test and choose the best for our solar water heater. We are do improvement details according the customer feedback and producing process. To offer a quality solar water heater, 100% solar water heater tank are tested and a sample set are installed to check if all is fine before delivery. All solar water heater we produced; the lifetime is more than 10years.Free exchange on damage goods fall in our warranty period.
