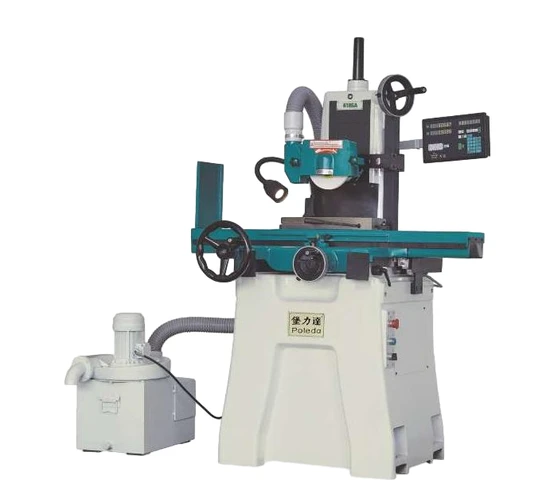

618s Manual Surface Grinding Machine, High Precision Waterproof Spindle

Product Description

Product Description
Surface grinding machine features:
High Efficiency: The surface grinder's high spindle speed and rapid processing capability significantly enhance processing efficiency.
Long Service Life: Each mechanical part of the surface grinding machine is meticulously designed and manufactured, ensuring a prolonged service life.
Low Maintenance Cost: Designed for simplicity, the surface grinding machine boasts low maintenance costs.
Simple Operation: With its user-friendly design, the surface grinding machine reduces operator training time and costs.
Safe and Reliable: Engineered with high safety standards, the surface grinding machine ensures operator safety.
Good Structural Rigidity: Constructed predominantly with a cast iron bed, column, workbench, grinding wheel, and grinding wheel frame, the surface grinding machine offers excellent shock resistance, wear resistance, and thermal stability, ensuring rigidity and stability.
Widely Applicable: These outstanding performance characteristics make the surface grinding machine an ideal choice for industrial production, suitable for grinding various surfaces and complex shapes, and capable of functioning without mechanical feed.

Product Parameters
Mechanical Properties
Machine Structure: Crafted from premium-grade cast iron, the principal castings of our machine undergo an exhaustive annealing process to eliminate internal stresses meticulously. This ensures extraordinary precision, enhanced rigidity, and an extended machine lifespan. Slide Way: Featuring a double V slide way for both lateral and longitudinal movements, our machine incorporates wear-resistant resin TI URCITE-B and precision shovel flower craftsmanship. This grants not only smooth and highly resilient sliding but also makes it exceptionally apt for precision forming and grinding applications.
Cylindrical Straight Spindle: Our machine is fitted with a P4 ultra-precision angular roller bearing, designed to ensure minimal noise and zero vibration. This setup delivers substantial torque even at elevated speeds, making it ideally suited for heavy-duty cutting as well as a variety of intricate forming grinding operations.
Automatic Lubrication System: Equipped with a cutting-edge circulating automatic lubrication system, our machine initiates the lubrication cycle the moment the main spindle starts. This system provides forced lubrication to every screw and slide, drastically reducing wear and tear. An oil mirror positioned above the column allows for continuous, real-time monitoring of the lubrication status, ensuring optimal performance.

Product name	Surface grinding machine
Product model	M618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) is determined by your unique needs, including color, logo, and other customizations. However, for certain standard items available in our inventory, the MOQ is just 1 set.
2.How do you control the quality of the products?
A. Quality is our utmost priority. We enforce rigorous quality control protocols to consistently maintain our high standards. Our commitment is to provide our customers with exceptional quality, competitive prices, and outstanding service.
3.What are the main products of your company?
A: We are experts in manufacturing a diverse range of machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and many more.
4. What are your trade terms?
A: We accommodate a variety of trade terms such as Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight)..What are your payment terms?
A: Our payment terms include T/T (Telegraphic Transfer), requiring a 30% initial deposit upon order placement, with the remaining 70% balance due before shipment.
6.What CNC systems do you use?
A: We provide a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The selection is based on your preference and specific requirements.
7.How can I choose the most suitable machines?
A: Kindly send us the drawings and detailed specifications of your products and applications. Our experts will then recommend the machines that best suit your needs.
8.What kind of packaging do you offer?
A. We generally use sturdy plywood cases to ensure that all goods arrive in perfect condition. Custom packaging options are also available upon request.
9.Can your plant do OEM?
A: Yes, we offer both OEM and ODM services to cater to any customer requirements.
10.How about the warranty?
A: Our products come with a one-year warranty from the date of delivery. Moreover, we provide lifetime service support for our machines, even beyond the warranty period.
