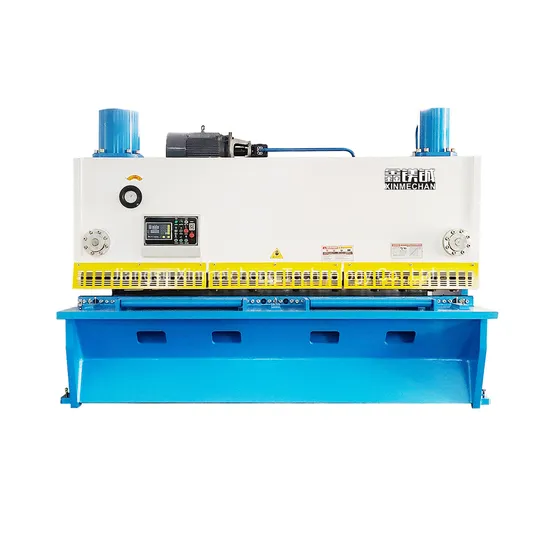

High Efficiency Hydraulic Metal Plate Shearing Machine Made in China

Product Description

Product Description
Detailed Photos
Characteristic of XINMECHAN shearing machine 1. The overall frame structure is welded in whole. The internal stress is eliminated by vibration, making its structure more robust and reliable. The oil route cable is built-in, the appearance is beautiful, tidy.
2. The upper and lower cut gaps do not require manual adjustment, adopt utility model, ensuring good cutting gap when cutting thin or thick plate.
3. The upper knife holder is active and adjustable as a whole, thus extending the service life.
4. The use of hydraulic backhaul design can achieve point cutting angle, but also avoid nitrogen leakage, and shearing vibration and noise, ensure that the machine runs smooth and quiet, without the need to fix the foundation.
5. The rear retainer can be easily removed and suspended in the knife holder, providing simple and convenient conditions for cutting very long plate materials.
6. The worktable surface and the body are welded and processed in a whole. And the widen countertop and long right-angle arm and the height of the humanized design allow the operator to complete the work comfortably and efficiently.
7. All hydraulic oil pipes are connected with bite type tube fittings/ferrules, avoiding traditional welding oil leakage and inconvenience maintenance and other problems.
Product Parameters
Specification sheet

Model	Cutting thickness (mm)	Cutting width	Stroke/ Number (times/min)	Travel of backgauge (mm)	Rake angle (.)	Throat Depth (mm)	Main Motor (kw)	Overall Dimensions L×W×H(mm)
6×2500	6	2500	10-25	20-600	0.5-1.5	100	7.5	3030×2075×1920
6×3200	6	3200	10-25	20-600	0.5-1.5	100	7.5	3730×3075×1920
6×4000	6	4000	10-25	20-600	0.5-1.5	100	7.5	4530×2075×2080
6×5000	6	5000	8-20	20-800	0.5-1.5	100	7.5	5530×2075×2310
6×6000	6	6000	8-20	20-800	0.5-1.5	100	11	6530×2075×2310
7×7000	7	7000	6-15	20-800	0.5-1.5	100	11	7530×2075×2830
8×2500	8	2500	10-25	20-600	0.5-1.5	100	11	3040×2075×1920
8×3200	8	3200	10-25	20-600	0.5-1.5	100	11	4080×2075×1920
12×2500	12	2500	6-20	20-800	0.5-2	100	18.5	3110×2575×2210
12×3200	12	3200	6-20	20-800	0.5-2	100	18.5	3810×2575×2420
12×4000	12	4000	6-20	20-800	0.5-2	100	18.5	4610×2575×2530
13×8000	13	8000	4-15	20-800	0.5-2	500	30×2	8600×2900×3100
16×2500	16	2500	5-15	20-800	0.5-2.5	100	18.5	3130×2655×2200
16×4000	16	4000	5-15	20-800	0.5-2.5	100	18.5	4630×2655×2570
20×2500	20	2500	5-15	30-800	0.5-3	100	22	3160×2855×2300
20×4000	20	4000	4-15	30-800	0.5-3	100	37	4660×2855×2520
25×2500	25	2500	4-15	40-800	0.5-3.5	100	37	3160×2900×2700

Certifications
Company Profile
JIANGSU XINMECHAN CO., LTD. is a modern enterprise, running CNC Press Brakes, Shearing machines, Guillotine machine, CNC Laser Cutting machines, CNC Grooving machines Hydraulic Angle Notching Machine and machine tools.
Our company has a group of knowledgeable and professional young team workers who are specialized in different subjects of the mechanical industry, committed to serving our customers. We can supply standard products as well as meet the special order requirements of customers and provide an optimum plan for every user.

At present, our products are widely used in various fields, such as ship and vehicle construction, aerospace, power industry, petrochemicals, iron and steel metallurgy, engineering machinery, container, bridge building, construction materials, and other industries.
We are constantly involved in technological innovation and technical improvement to supply more advanced products for you. 'KEEP LEADING TECHNOLOGY, QUALITY FIRST, HONESTY, PRAGMATIC AND INNOVATIVE' is our business philosophy. We had implemented the international quality system standards fully. Each process of production and delivery is to the requirements of national and industry standards as well as users' needs strictly. We can guarantee the products our customers received are of superior quality.
We sincerely want to bring you excellent services and qualified products. Welcome to contact us!
Pre-sales services, supply customization
We provide customers with the best possible process solutions, technical advice, samples to test, model selection and other consulting service.
In-sale services, provide all aspects of technical support
We design tailor-made training programs for you, including equipment operation, product maintenance and maintenance, troubleshooting, safety operation and other aspects of training.
After-sales service perfectly and timely
We guarantee 10 hours to respond to customer demand, free maintenance during the warranty period, life-long maintenance, timely provision of spare parts, remote diagnosis, regular visits and other services.
Packaging & Shipping
1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by some soft materials mainly using pearl wool.
3. The outmost is a wooden case with fixed formwork.
4. The bottom of the wooden case has a firm iron jack, convenient for handling and transport.
FAQ
1. Can you supply the relevant documentation?Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.2. What is the average lead time?For samples, the lead time is about 7 days.
For mass production, the lead time is 20-30 days after receiving the deposit payment.The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases, we will try to accommodate your needs. In most cases, we can do so.3. What kinds of payment methods do you accept?You can make the payment to our bank account, Western Union, or PayPal:30% deposit in advance, 70% balance against the copy of B/L.4. What is the product warranty?We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.5. Do you guarantee safe and secure delivery of products?
Yes, we always use high-quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature-sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6. How about the shipping fees?The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most the expensive way. By seafreight is the best solution for big amounts. We can only give you the freight rates if we know the amount, weight, and way details. Please contact us for further information.
