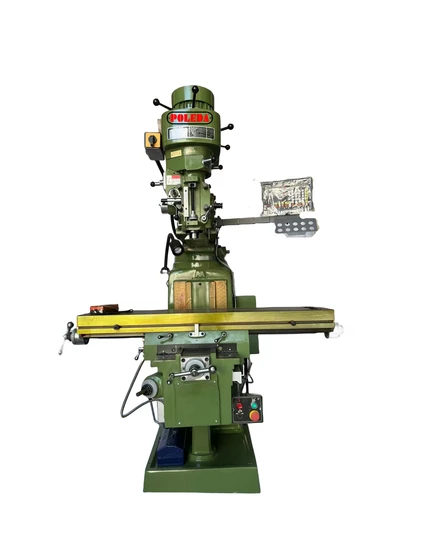

Manufacturer Direct Sales of High Quality 4s Universal Rocker Arm Milling Machine

Product Description

Product Description
A milling machine is a versatile machine tool that utilizes a rotating tool to cut materials on machined parts. As one of the most widely used machine tools in metal cutting processes, it excels in shaping planes, surfaces, and gear parts. Additionally, it can perform drilling, reaming, boring, and other intricate processes with precision.
Basic Structure of the Milling Machine:
The fundamental components of the milling machine include the bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, and motor, among other essential parts.
1. Bed: The bed serves as the primary support structure of the milling machine, accommodating various components. Typically cast for optimal stability, it offers robust rigidity to enhance performance.
2. Slide Table: The slide table is a vital moving component, gliding back and forth on the bed. Equipped with a workbench and horizontal shaft, it allows precise positioning and processing of machined parts by smoothly maneuvering the sliding table.
3. Workbench: The workbench is the operational platform of the milling machine, designed to grip and secure the machined parts firmly. It can rotate, tilt, and perform other operations as needed to accomplish complex machining tasks. Machined part processing.
Product Parameters
Structural Characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other primary components are cast using high-strength materials to ensure durability.
These parts undergo artificial aging treatment, guaranteeing the long-term stability and reliability of the machine tool.
2. The milling head is fitted with a turret milling head, and the main shaft supports both manual and micro feeding methods, enabling convenient and precise processing.
The milling head can be adjusted ±45° vertically and 360° horizontally, significantly expanding the machine's machining range.
3. The vertical and horizontal table offer three feed types: manual, mobile, and mobile fast feed. The mobile feed features 8 different speeds.
This versatility meets various processing requirements, while the fast feed allows rapid positioning of the workpiece, reducing non-machining time.
4. The lifting platform's Z-axis can be maneuvered both manually and automatically, with interlocked manual and maneuvering functions to eliminate safety hazards.
5. The table's X-direction travel reaches up to 800mm. The X, Y, Z guide pairs undergo ultra-audio quenching, precision grinding, and scraping treatments,
enhancing accuracy and extending the machine's service life.
6. A manual lubrication device ensures forced lubrication of the longitudinal, horizontal, and vertical lead screws and guide rails, minimizing wear and ensuring efficient machine operation.
The cooling system allows for adjustable coolant flow, meeting diverse processing needs.
7. The machine's operating system is ergonomically suspended on the upper right side for ease of use.
The operation panel's intuitive design with figurative symbols makes it simple to operate.
8. The turret milling machine spindle options include R8, NT30, and NT40.
9. The machine is equipped with an improved electrical box and controller, featuring 110V and 220V output sockets.

Product Name	Milling machine
Product model	3M/3S/4M/4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	740MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	360MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
	Table bearing	300KG
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	Three-axis screw diameter	Tr32mm
	Three-axis lead screw pitch	5mm
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
