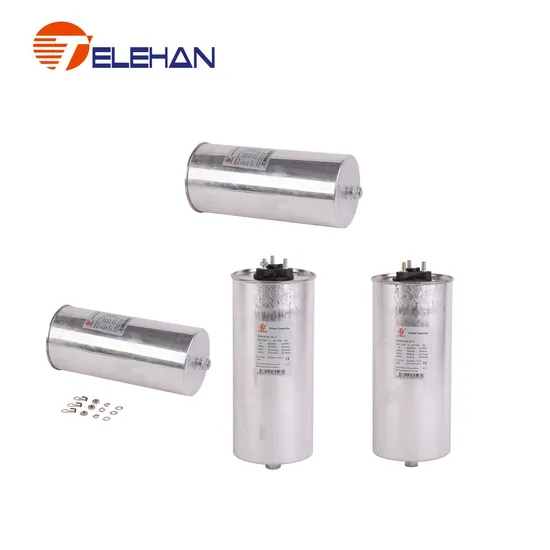

Self-healing low voltage shunt capacitor (single phase, for mineral thermal oven) Application: Self healing low voltage shunt power capacitor was used in 50 Hz and 60Hz power system, it mainly improver power factor, reduce reactive power loss, improve voltage quality. Encavate transformer quantity and so on. It is best saving power products which company strong recommend and work. This product meets the standard: GB/T 12747-2004, IEC60831-1996.
Working conditions:
⊕Power capacitor should confirm left voltage reduce to rated voltage 10% to input again after the power was cut off, normally it will need 200s almost,. So it would choose the power controller which has input and reput lock time function after cut off the power. If choose normally power controller, it would not limted which use adopting same electric factor input and chip switch.
⊕Altitude level is not more than 2000m .
⊕Temperature type: -25/C low temperature, highest temperature is C type (it would not more than 50ºC the average of temperature is not more than 40ºC within 24 hours, one year average of temperature is not more than 30ºC), power capacitor will work within good ventilate condition. It would not permit within sealing and installation condition.
Structure features
⊕Taking cylinder aluminum case.
⊕ Immerse liquid: no social effects of pollution dielectric oil.
⊕Inseting press detaching equipment and discharge electric resister
⊕Capacitor core is healing good quality metalized film .
⊕Capacitor top is anti touching electric terminal block.
⊕Bottom is M12 or M16 install ground bolt.
⊕Three phase capacitor is inside △ connection way.
Main technical data
⊕Rated voltage: 0.23kV ,0.25kV ,0.4kV ,0.415kV ,0.45kV ,0.48kV ,0.525kV and so on.
⊕Rated capacity: 1~30kvar.
⊕Capacity tolerance: -5%~+ 10%
⊕Power loss tan δ ≤0.1%
⊕Between pole voltage: 2. 15 times rated voltage is 5 second, no permanence puncture or shine.
⊕Dielectric level: between cover add the voltage: 2 times rated voltage plus 2KV or 3KV, please take height continue 10 second, no puncture and shine.
⊕Max permit voltage: 1. 1 times voltage, every 24 hours is not more than 8 hours, 1. 15 times voltage, every 24 hours is not more than 30 munites 1.2 times voltage, it would not more than 5 second (continue) 1.3 times voltage, not more than 1 minutes.
⊕High permit current: it is permit to work within less than 1.3 times rated current, as there are over voltage and capacitor positive deviation and harmonic the over current is not than 1.43 times rated current.
⊕Discharge component: inside put discharge register, capacitor cut off power, than discharge 3 munites electric, so the voltage reduce to 50V.
⊕Standard: GB/T12747-2004, IEC60831-2002.
Main technical data

Model BSMJ		Rated Volt. (KV)				Rated Capacity (Kvar)			Rated Capacitance (μF)					Rated Current (A)					Rated Frequencies HZ					Dimension (mm)					Connection					Bottom Bolt					Drawing No.
0.25-2.5-3		250				2.5			127.4					5.8					50					76x180					△					M12x16					1
0.25-3-3		250				3			152.8					6.9					50					76x180					△					M12x16					1
0.25-4-3		250				4			203.8					9.2					50					76x240					△					M12x16					1
0.25-5-3		250				5			254.7					11.7					50					96x240					△					M16x25					2
0.25-6-3		250				6			305.7					13.9					50					96x240					△					M16x25					2
0.25-7.5-3		250				7.5			382.1					17.3					50					96x240					△					M16x25					2
0.25-8-3		250				8			407.6					18.5					50					96x240					△					M16x25					2
0.25-10-3		250				10			509.4					23. 1					50					106x290					△					M16x25					2
0.25-12.5-3		250				12.5			636.8					28.9					50					106x290					△					M16x25					2
0.28-2.5-3		280				2.5			101.5					5.2					50					76x180					△					M12x16					1
0.28-3-3		280				3			121.8					6.2					50					76x180					△					M12x16					1
0.28-4-3		280				4			162.4					8.2					50					76x240					△					M12x16					1
0.28-5-3		280				5			203					10.3					50					76x240					△					M16x25					2
0.28-6-3		280				6			243.7					12.4					50					76x240					△					M16x25					2
0.28-7.5-3		280				7.5			304.6					15.5					50					96x240					△					M16x25					2
0.28-8-3		280				8			325					16.5					50					96x240					△					M16x25					2
0.28-10-3		280				10			406.1					20.6					50					96x240					△					M16x25					2
0.28-12.5-3		280				12.5			507.6					25.8					50					106x240					△					M16x25					2
0.45- 1-3		450				1			15.7					1.3					105					60x110					△					M10x 16					3
0.45-2-3		450				2			31.4					2.6					105					60x110					△					M10x 16					3
0.45-3-3		450				3			47.2					3.8					105					60x110					△					M10x 16					3
0.45-4-3		450				4			62.8					5.1					50					76x180					△					M12x16					1
0.45-5-3		450				5			78.5					6.4					50					76x180					△					M12x16					1
0.45-6-3		450				6			94.2					7.7					50					76x180					△					M12x16					1
0.45-7.5-3		450				7.5			117.8					9.6					50					76x180					△					M12x16					1
0.45-8-3		450				8			125.6					10.2					50					76x240					△					M12x16					1

Model BSMJ			Rated Volt. (KV)				Rated Capacity (Kvar)			Rated Capacitance (μF)					Rated Current (A)					Rated Frequencies HZ					Dimension (mm)					Connection					Bottom Bolt					Drawing No.
0.45- 10-3			450				10			157					12.8					50					76x240					△					M12x16					1
0.45- 12.5-3			450				12.5			196.3					16					50					76x240					△					M12x16					1
0.45- 15-3			450				15			235.5					19.2					50					96x240					△					M16x25					2
0.45- 16-3			450				16			251.2					20.5					50					96x240					△					M16x25					2
0.45-20-3			450				20			314					25.6					50					96x240					△					M16x25					2
0.45-25-3			450				25			392.5					32					50					106x240					△					M16x25					2
0.45-30-3			450				30			471					38.5					50					106x290					△					M16x25					2
0.48-2.5			480				2.5			34.5					3.0					50					76x180					△					M12x16					1
0.48-3-3			480				3			41.4					3.6					50					76x180					△					M12x16					1
0.48-4-3			480				4			55.2					4.8					50					76x180					△					M12x16					1
0.48-5-3			480				5			69					6.0					50					76x180					△					M12x16					1
0.48-6-3			480				6			82.8					7.2					50					76x180					△					M12x16					1
0.48-7.5-3			480				7.5			103.5					9.0					50					76x240					△					M12x16					1
0.48-8-3			480				8			110.4					9.6					50					76x240					△					M12x16					1
0.48- 10-3			480				10			138					12					50					76x240					△					M12x16					1
0.48- 12.5-3			480				12.5			172.5					15					50					96x240					△					M16x25					2
0.48- 15-3			480				15			207					18					50					96x240					△					M16x25					2
0.48- 16-3			480				16			220.8					19.2					50					96x240					△					M16x25					2
0.48-20-3			480				20			276					24. 1					50					106x240					△					M16x25					2
0.48-25-3			480				25			345					30. 1					50					106x290					△					M16x25					2
0.48-30-3			480				30			414.7					36. 1					50					106x290					△					M16x25					2
0.48-40-3			480				40			552.9					48. 1					50					116*290					△					M16x25					2
0.48-50-3			480				50			691.1					60. 1					50					136*305					△					M16x25					2
0.525-5-3			480				5			57.8					5.5					50					76x180					△					M12x16					1
0.525-7.5-3			525				7.5			86.6					8.3					50					76x180					△					M12x16					1
0.525- 10-3			525				10			115.5					11					50					76x180					△					M12x16					1
0.525- 12.5-3			525				12.5			144					13.8					50					76x240					△					M12x16					1
0.525- 15-3			525				15			173.3					16.5					50					96x240					△					M16x25					2
0.525-20-3			525				20			231					22					50					106x240					△					M16x25					2
0.525-25-3			525				25			288.8					27.5					50					106x290					△					M16x25					2
