Two Roller Machine / Two Roll Mill for Rubber Sheet Producing

Product Description

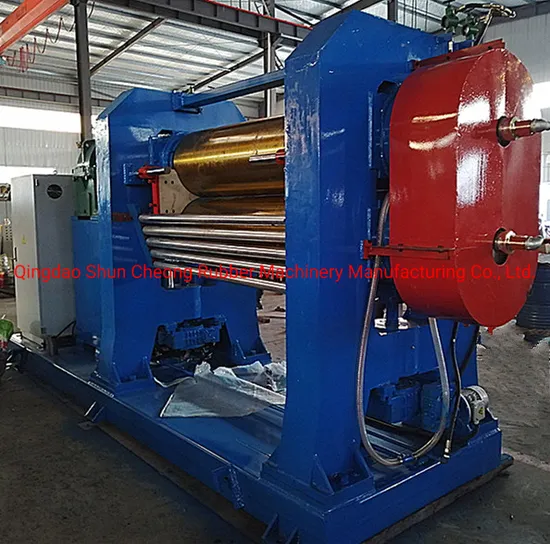

Two Roller Machine / Two Roll Mill for Rubber Sheet Producing
Our company is a professional manufacturer for rubber machines, the calender have two rollers, three rollers, and four rollers type.
Model:
XY-230x630 XY-360X900 XY-360x1120 XY-400x1200 XY-450x1500 XY-610x1730 XY-710x2130 XY-810x2430
This production line for mexico customer design: ( two rollers calender → three rollers cooling machine→ take-up device)
Product Description
Usage:
The calender can be used for rubber sheet or PVC sheet processing, tire sheet processing, coating ect. Roller number will be two roll,three roll, four roll ,five roll.
Features for the rubber (or PVC) calender:
Hollow Roll : quantity can be 2,3,4 or 5 according to the technical of products.
We can design drilled roll for you. and mirror polishing the surface.
The roll material is Cast iron alloy (LTG-H), after quenching and precision processing, hardness HS:76.
Main bearing : Dual-listed Tiaoxin spherical roller bearings
Base of machine : is made by cast iron (FC30),after quenching,highest intension and precision, with lubrication hole.
seal-capping of base is made by aluminum ,no oil leakage in and outside.
Reducer: Airtight leaching oil type,hardened gear reducer, Almost no noise,safty . Precision is six grade.
Lubrication pump: power is 0.37 KW,by Oil automatic circle. With oil back window on the base of machine,you can check the oil for lubrication.
Emergency brake between motor and reducer, when overload ,the machine will stop automaticly
Qingdao Shun Cheong Machinery Co., Ltd. is a the partner of Acooperating Unit Of China Science institute, and also we export rubber machines to all the world, such like south Asia, south America, Africa etc.
ISO 90001. Excellent design, good quanlity, competitive price and best sale service to win more and more clients, please contact us for the long-term business.

Item		XY-4Γ630	XY-4Γ1120	XY-4Γ1400	XY-4Γ1500	XY-4Γ1730	XY-4Γ2130	XY-4Γ2430
Roller Diameter	mm	230	360	400	450	610	710	810
Roller Working Length	mm	630	1120	1400	1500	1730	2130	2430
Roller Ratio		1:1:1:1	0.73:1:1:0.73	1:1.383:1.383:1	1:1.5:1.5:1	1:1.4:1.4:1 1:1.4:1.4:1.4	1:1.48:1.48:1 1:1.48:1.48:1	1:1.5:1.5:1
Middle Roll Linear Speed)	r/min	2.1-21	2-20.1	3-26.3	2.5-25	8-50	8-50	2-20
Nip Adjustment Range	mm	0-10	0-10	0-10	0-6	20	0-20	0.5-25
Minimum Thickness of Calendering Products	mm	0.2	0.2	0.2	0.2	0.15	0.15	±0.1
Calendering Products Width	mm	100-500	500-920	1200	1250	1500	1900	2150
Motor Power	KW	15	55	75	110	160	185	280
Dimension (mm)	L	mm	3300	6600	6500	6580	7010	9800
	W	mm	940	1620	1970	2460	4150	4260
	H	mm	2350	2490	2740	2920	3730	5720

We can design various kinds of non-standard rubber machinery according to your requirements.
FAQ:
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6.How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.
