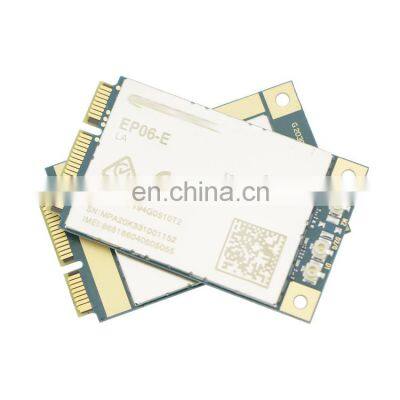

LTE category 6 module EP06, LTE-A Module EP06-E EP06ELA-512-SGA

Product Description

Product Description
DescriptionOverviewEP06 is a series of LTE category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates up to 300Mbps downlink and 50Mbps uplink.Designed in the Mini PCIe form factor, EP06 series contains 2 variants (EP06-E and EP06-A) for different target regions and both variants nearly cover all the main stream carriers worldwide.EP06 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, set top box, industrial PDA, rugged tablet PC, video surveillance and digital signage. Key Benefits● LTE-A Cat 6 module with Mini PCIe form factor, optimized for M2M and IoT applications● Support LTE-A carrier aggregation● Worldwide LTE-A and UMTS/HSPA(+) coverage● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment● Feature refinements: supports DFOTA and DTMF● MIMO technology meets demands for data rate and link reliability in modem wireless communication systemsFrequencyEP06-EEP06-ALTE-FDDB1/B3/B5/B7/B8/B20/B28/B32②B2/B4/B5/B7/B12/B13/B25/B26/B29②/B30/B66LTE-TDDB38/B40/B41LTE 2×CAB1+B1/B5/B8/B20/B28;B3+B3/B5/B7/B8/B20/B28;B7+B5/B7/B8/B20/B28;B20+B32②;B38+B38;B40+B40;B41+B41B2+B2/B5/B12/B13/B29②;B4+B4/B5/B12/B13/B29②;B7+B5/B7/B12/B26;B25+B5/B12/B25/B26;B30+B5/B12/B29②;B66+B5/B12/B13/B29②/B66UMTS/WCDMAB1/B3/B5/B8B2/B4/B5Embedded GNSSYYPCIe InterfaceOptionalOptionalUSB 3.0YYRegionEMEA/APAC①/BrazilNorth AmericaCertificationCarrier:Deutsche Telekom*/ TelstraRegulatory:GCF/ CE/ NCC/ RCMCarrier:Verizon/ AT&T/ Sprint/ RogersRegulatory:GCF/ FCC/ PTCRB/ ICNotes:① Excluding Japan and CMCC.② LTE-FDD B29 and B32 support receiving only, and are only for secondary component carrier in 2×CA. * Under Development.Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
