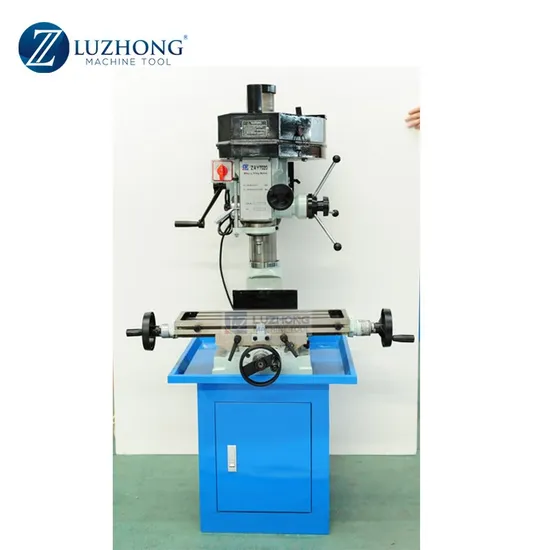

Vertical Cheap ZAY7032 Metal Drilling And Milling Machine for sale

Product Description

Vertical Cheap ZAY7032 Metal Drilling And Milling Machine for sale
Product Description
The main performance characteristics:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system Product Parameters
Product main technical parameters:

Model		ZAY7032
Drilling capacity		32mm
Face milling capacity		63mm
End milling capacity		20mm
Distance from spindle nose to table		450mm
Min.distance from spindle axis to column		203.5mm
Spindle travel		130mm
Spindle taper		M.T.3 or R8
Step of spindle speed		12
Range of spindle speed	50Hz	80-2080 r.p.m
	60Hz	100-2500 r.p.m
Swivel angle of headstock (horizontally)		360°
Table size		800×240mm
Forward and backward travel of table		175mm
Left and right travel of table		500mm
Motor Power		0.75KW
Net weight/gross weight		280kg/330kg
Packing size		1020×820×1160mm
