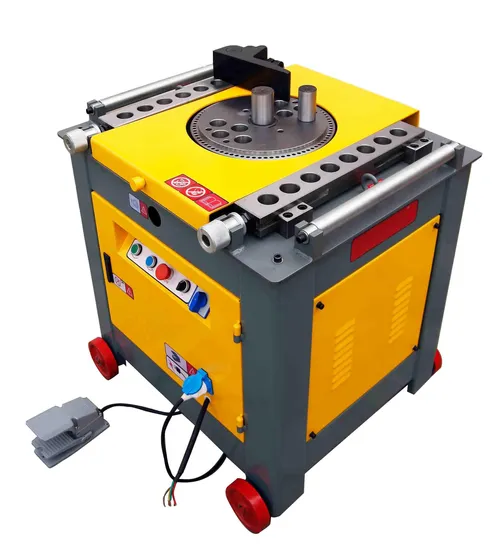

Steel Bending Machine Rebar Bender (Automatic type GW55D)

Product Description

Steel Bending Machine (Automatic type GW55D) Product Description
It is ideal equipment for steel bar bending working.This model has reasonable design,simply structure.It enables to bend bars of diameters¢ 3~42mm to various shapes,which is applicable in many kinds of construction projects such as bridge,tunnel etc. Technical Specification
MOTOR TYPE:
GW55D-4 Automatic: Brake Motor
GW55D-1 Manual: Normal
GEAR BOX: cast steel
INSIDE GEAR: C45 steel
GEAR SHAFT: C45 steel
WORKING DISK: C45 steel
STOP GAUGE: C45 steel
PILE HEAD: CR40 steel
EXTERNAL CASE: Q235

Products Advantages:
1.The working disk is inserted into the working table which made the external appearance pleasant at sight and the operation easy to handle.
2.Adopted the FULLY ENCLOSED TYPE CASE so that distortions, which happen under the condition of heavy load, can be avoided.

3.GEAR, GEAR SHAFT, WORKING DISK, STOP GAUGE and PILE HEAD are made of high quality ALLOY STEEL which has undertaken the HEAT TREATMENT (quenching and tempering, high frequency), this is in order to make sure that the important parts can ensure reliable operation also under heavy load conditions and guarantee LONG-LASTING WORKING LIFE.
4.Totally adopt bearing type featured with FLEXIBLE MOVEMENT and LONG WORKING LIFE.
5.Unlike normal benders, there is no need to add lubricant frequently on to the main bearing sliding bush, just pour enough lubricant before use. It is also CONVENIENT for usage and MAINTENANCE.
6.The AUTOMATIC model adopted Brake Motor, insert pin type location disk to ensure the ACCURACY of bending radian and the convenience of the adjustment.
7.The stop gauge can be INSTALLED from FOUR DIFFERENT CORNERS four different corners to realize the requirement of putting steel bar from various directions.
8.The articulated type motor is convenient and FAST to adjust.
9.The controlling table adopted rotary type which made the transportation and operation full of HUMANIZATION.

Worry-saving: The main components last for 10 years, and main wear parts can last for 3 years, which almost cost you nothing for maintenance.

Time-Saving: The international advanced structure ensures the fastest bending speed.

Labor-saving: One machine to cut different sizes of steel bar without changing the blade

I Main Ttechnical Parameters:

Model		GW55D-4
Net Weight		595kgs
Packing size		1150*1000*1150mm
Maximum bend diameter	Q235 steel	55mm
	C45 steel	40mm
Rotation speed of working disc		7.8r/min
Power of motor		4kw-5HP
Voltage		380 V
Bend control way		Manual/Automatic
Structure of reduction gearbox		gear type (Cast steel)

II Bending capacity :

Φ mm	R. 45 Kg/mm2 450 N/ mm2			R. 65 Kg/mm2 650 N/ mm2			R. 85 Kg/mm2 850 N/ mm2			Speed r/min	Motor
Amount of rebar	1	2	3	1	2	3	1	2	3		HP	kW
GW35D	30	25	20	28	22	18	25	20	16	12	3	2,2
GW42D	40	30	25	36	25	22	32	22	20	9	4	3
GW55D	45	36	30	42	34	25	40	32	22	7.8	5,5	4

III. Maximum Quantity of Rebar to Be Bended at One Time

Quantity of rebar to be bended at one time (pc) Maximum diameter of rebar (mm)			1	2	3	4	5	6	7	8
Single bending	σb	≤450N/mm2	42	30	26	22	18	14	10	8
		≤650N/mm2	36	26	22	20	16	12	8	6
		≤850N/mm2	32	24	20	18	14	10	6
GW40		≤450N/mm2	38	30	25	20	16	12	10	8
GW42D		≤450N/mm2	40	30	25	20	16	14	10	8
GW50		≤450N/mm2	42	34	28	22	18	14	10	8
GW55D		≤450N/mm2	45	36	30	25	22	18	14	10
Doubling bending	σb	≤450N/mm2	30	22	20	18	14	10	8	6
		≤650N/mm2	28	20	18	16	12	8
		≤850N/mm2	26	18	16	14	10
GW40		≤450N/mm2	30	18	16	14	10	8	6	4
GW42D		≤450N/mm2	30	20	18	14	10	8	6	4
GW50		≤450N/mm2	32	25	20	16	14	10	8	6
GW55D		≤450N/mm2	36	25	20	18	14	10	8	6
