Naseiko CNC Blank Preparation Grinder Nz-50 High Precision Profile Cutter Grinder

Product Description

Detailed Photos
Product Description

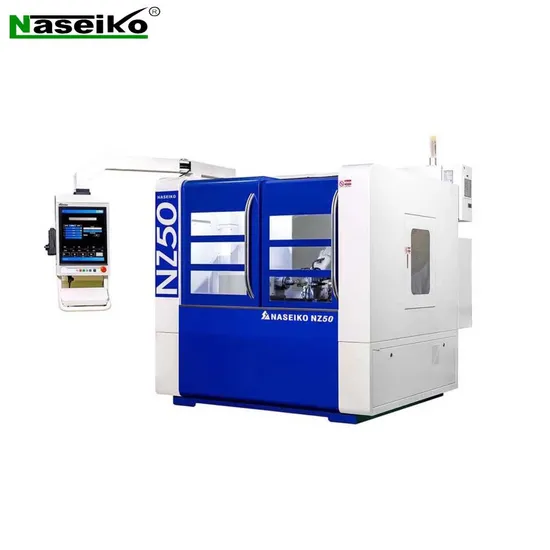

NZ-50 CNC mismatch step grinder with coarse and fine grinding integrated, widely applied in molding cutting tool step grinding, large length ratio workpiece, punch, micro bit processing

Easy to operate with high accuracy grinding wheel.

Designed based on the design concept of Swiss company ROLLOMATIC

The machine tool system adopts the Syntec system and software.

X, Y, Z and V linear axis adopts the Syntec motor and Japanese THK leadscrew and guide rail.

German INA high precision bearing group for axis end support to ensure the rigidity of the grinding and production efficiency and quality of the production, realizing the semi-finished grinding processing of multiple varieties of tools.

Equipped with a 6-joint robot to achieve fully automatic workpiece acquisition, effectively reduce the labor cost and management cost, improve the fully automatic and high production, and greatly reduce the failure rate of repeated loading and unloading.
Product Parameters

PROJECT	UNIT	NZ-50
Finishing grinding spindle	kw	4
Pass grinding spindle	kw	15
Minimum clamping diameter of workpiece	mm	Φ0.5
Maximum clamping diameter of workpiece	mm	Φ20
Maximum workpiece length	mm	Φ200
Main grinding minimum workpiece diameter	mm	Φ0.05
Main grinding maximum workpiece diameter	mm	Φ20
Linear resolution	mm	0.001
Linear repeat positioning accuracy	mm	0.003
Aggregate capacity	kw	about 30

Packaging & Shipping

Company Profile
Naseiko, a global leader in providing comprehensive solutions in the tungsten carbide industry, focusing on manufacturing high-quality tungsten carbide products and related sophisticated automatic machines, are committed to delivering integrated solutions to meet the needs of our worldwide customers in this industry.- Our extensive product line covers a wide range of applications in the tungsten carbide industry. We offer top quality products such as high precision CNC insert, milling cutter, carbide burrs, industry knife, wear-resistant components, carbide tools. These products are manufactured using advanced techniques and premium hard alloy materials, ensuring exceptional hardness, toughness, and wear resistance.

- Except supplying superior quality carbide products, Naseiko also provide a wide range of equipments and solutions specifically designed for tungsten carbide production. Our state-of-the-art equipment includes high-precision electric servo pressing machines, Five axis linkage CNC grinding machines, Five axis linkage CNC grinding machines, and all kinds of high precision carbide mold. Our advanced machines help our customers to enhance production efficiency, ensure high machining precision and maintain consistent product quality.
FAQ
Q: What is your product line?
A: CNC grinding machine, CNC mismatch grinder machine, Electronics servo press machine, Precision Grinding Wheel Dressing Machine. Carbide end mill, carbide burr, dental burrs, and other tungsten carbide items,etc.
Q: Is ODM or OEM production supported?
A: Yes.
Q: What is MOQ for your product?
A: For standard models machine, MOQ is 1 set ;
For OEM ODM customized machine, MOQ is from 10 sets.
For carbide tools, MOQ is from 1000 units.
Q: How long is the delivery time?
A: For standerd Naseiko machine, it is about 1-2 months after order confirmed;
For customized machine, it will be 6~12 months after order confirmed;
For customized milling cutter or carbide burrs, it is about 1 month.
Q: Where is your loading port?
A: Shanghai / Guangzhou ,China port.
Q: How do you implement equipment warranty overseas?
A: At present, we have contracted after-sales service points overseas, and in the future, we will establish our own after-sales service centers in key overseas markets.
Q: What are your benefits superior to other suppliers?
A: Naseiko Intelligent technology is a manufacturing enterprise with years of industry experience, focusing on the research and production of CNC tool grinders. Our team has rich experience and professional knowledge in this field. We have international advanced testing equipment, excellent craftsmanship and refine quality management system, as well as professional team. It ensures our products stable and reliable.
