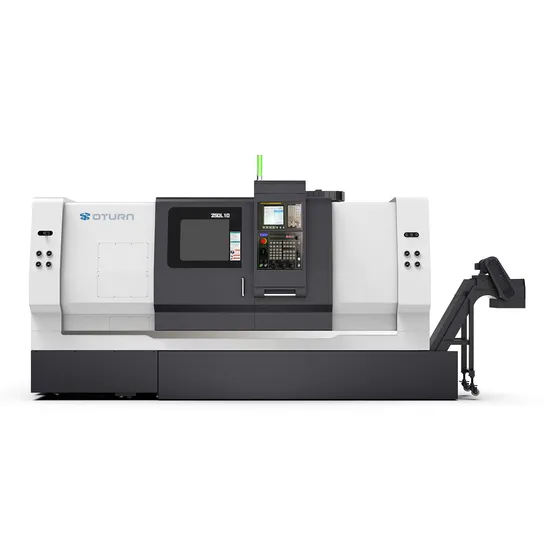

Oturncnc 25L10 High Precision Metal Turning CNC Slant Bed CNC Lathe Full Automatic 2 Axis CNC Machine

Product Description

Product Description
The machine adopts an optimized 30-degree inclined bed structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. High-strength hard rail structure, the transmission system adopts screw pre-tension design to improve the rigidity performance..
The machine tool is equipped with hard rail guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to reduce the thermal displacement. to the lowest level, greatly improving processing accuracy. Product Parameters

Item Model	Name	Unit	250L10
Travel	The largest diameter rotating bed	mm	Φ640
	Max. processing diameter	mm	Φ570
	Max.Swing Over Cross Slide	mm	Φ350
	Max. processing length	mm	930
Spindle Motor Hydro Cylinder Chuck	Spindle nose	type	A2-8
	Max. speed of spindle	rpm	2500
	Hydraulic Cylinder/Chuck	lnch	10″
	Spindle hole diame	mm	Φ86
	Bar diameter	mm	Φ75
	Spindle motor power	kw	15/18.5
	Motor torque143-236 pulley ratio;1:2	Nm	215-354
X/Z axis feed	X/Z travel	mm	300/980
	/X/Z/Y Specification of shaft guide	/	hard rail
	X/Z Shaft motor torque	Nm	22
	X/Z motor power	kw	3.0
	positioning accuracy	mm	±0.005
	repeat positioning accuracy	mm	±0.003
	X/Z axis moving fast	m/min	20/20
Servo Cutter	The tool biock specifications	mm	32X32
	Circular cutter holder specification	mm	Ф50
	The adjacent tool change time	sec	0.2
Tail stock	hydraulic tail seat	/	Hydraulic tailstock
	The biggest stroke of the tail	mm	930
	Morse Slide way	type	Mohs 5#
	Sleeve diameter	mm	Ф100
	Sleeve travel	mm	80
Mechanical Size	Machine size	mm	3900*2270*2150
	Machine Weight	kg	6800
Other	Cutting fluid tank volume	L	250
	Volume of hydraulic unit box	L	40
	Hydraulic oil pump motor power	kw	1.5
	Volume of lubricating oil tank	L	2
	Auto lube pump motor power	W	50
	Cooling water pump power	W	750

Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
