ISO-9001 Certificated Copper Clad Aluminum Wire /CCS Wire for Computer Cables

Product Description

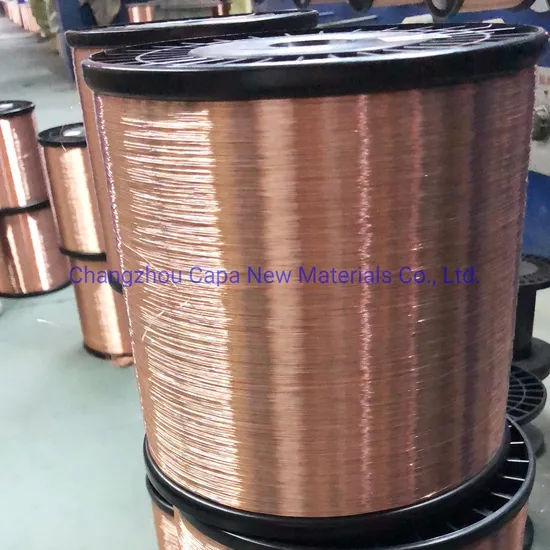

Copper clad steel stranded wire consists of several strands of CCS wire.
CCS Wire Main Technical Parameters

Diameter (mm)	Tolerance (mm)	Conductivity (%) Min.at ºC	Resistivity (Ω.mm2/km) Max. at 20ºC	Resistance (Ω/km) max at 20ºC	Hard type		Annealed type
					Tensile strength (Mpa) Min.	Elongation (%) Min.	Tensile strength (Mpa) Min.	Elongation (%) Min.
0.102	0.003	16	108	13187	827	1	380	10
		21	82	10047
		30	57	7033
		40	43	5275
0.511	0.005	16	108	525	827	1	380	10
		21	82	400
		30	57	280
		40	43	210
0.81	0.008	16	108	209	827	1	380	15
		21	82	159
		30	57	112
		40	43	84
1.02	0.01	16	108	132	827	1	380	15
		21	82	100
		30	57	70
		40	43	53
1.628	0.016	16	108	52	827	1	380	15
			82	39
		30	57	28
		40	43	21

CCS Wire Main Application Area
CCS Wire Productive Process (OUR FACTORY)
Quality Control
Incoming inspection(Raw material) » Process inspection &control(Semi-finished product) » Outgoing inspection (Finished product)
Test Equipment
Packing & Shipping (20GP can put in 15-23 tons)
Our Advantages:
1.Short delivery and timely delivery.
2.To be your partner,not only supplier.considerate after-sales service.
3.Professional manufacture with more than 10 years experience.
4.Full set of testing equipment to ensure products' performance.
5.Strict quality control process.
6.We are factory and our price is competitive.
7.Products can be customized according to your special requirements.
If you are interested in our products, it would be highly appreciated to contact me anytime.
CCS Wire FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH ROHS and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 5 inspection personnel. Quality inspection team including incoming material, process and finished product inspection.Strict Quality Control and full inspection for each reel of wire.
We have the solderability test instrument, automatic spring back angel test instrument and dielectric loss test instruments to ensure the quality in each step.
4. Q: What's the main market of your company?
A: We have customers all over the world. Abundant experience serving overseas market.
5. Q: What's your company 's product scope?
A: We have many kinds of products ,such as Copper Clad Aluminum Wire (CCA wire), Copper Clad Aluminum Magnesium (CCAM) Wire, Copper Clad Steel Wire (CCS wire), Tinned CCA wire, Tinned CCAM wire, Tinned CCS wire, enameled copper clad aluminum wire (Enameled CCA wire, ECCA Wire),Enameled copper wire, Enameled Aluminum wire (EAL wire), Silver plated wire, Composite Round (Tinned) copper wire, Copper Clad copper wire, CCA stranded wire & Parallel wire, CCS stranded Wire, CCA Busbar, power wire and cable,Coaxial cables, communication cables., etc.
6. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Changzhou City, Jiangsu Province, China.
Near Shanghai, convenient transportation. We offer transportation service.
7.Q: How long is your delivery time?
A: Generally it is 5-10 days after confirm P.O., it is according to quantity.Sample order needs around 5 days, Formal order needs around 7-10 days.
8.Q: What is your terms of payment?
A: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
9. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
If you have other questions, please feel free to contact us.
