0.22 Micron Alternative PP Capsule Filter Ink Filter Cartridge

Product Description

Product Description:0.22 micron Developer alternative PP Capsule Filter SWAGELOK

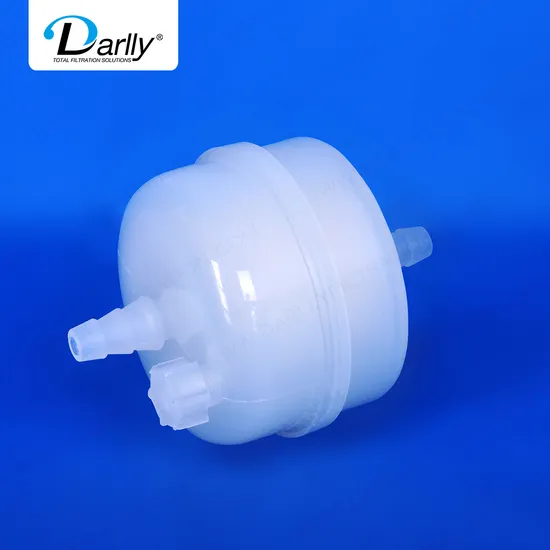

Our capsule filter are the ready-to-use units for critical applications and for the filtration of the small volume flows for gases and liquids. The filter unit consists of a durable polypropylene housing and is available for various filter media and different pore sizes. The housing units are thermal welded. All the capsule filters have many different connections opinions. They are manufactured in a clean room environment and are processed in double sealed packing to avoid any possible contamination.
Applications
°Pharmaceutic industry
°Chemical
°Biothechnology
°Electronics
°Cosmetics
°Food& Beverage
°Ink
Features
°Many kinds of filter media and removal rating
°Made in the clean environment and always keep clean situation
°Absolutly bio-safety and non-toxic
°Have many kinds of capsule size. Please choose the correct filter accroding to the flow rate anf flow speed, because different capsules' length have different effective filtration area
Specifications

Filter Media	PP, PES, PTFE, Nylon6
Filter housing	PP
Support Material	PP
Sealing	Thermally Welded
Removal Ratings	PP: 0.1µm, 0.22µm, 0.45µm, 1µm, 3µm, 5µm, 10µm, 20µm, 30µm, 50µm PES: 0.1µm, 0.22µm, 0.45µm PTFE: 0.1µm, 0.22µm, 0.45µm for liquid, 0.01µm, 0.02µm for gas Nylon6: 0.1µm, 0.2µm, 0.45µm, 0.65µm, 1µm

Detailed dimensions and connection style attached.
Part Number/Ordering Information:
DL Code+Filter Media+Rating

For Example: DL712B0022: Code 712 with PES media, 0.22µ M.
