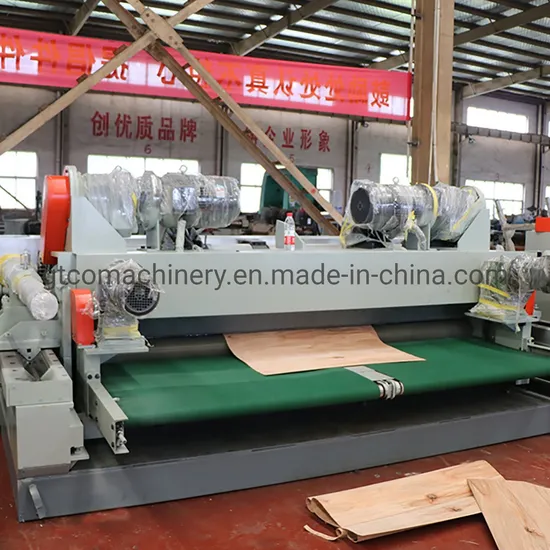

4 Feet 8 Feet 10 Feet Spindleless Veneer Peeling Lathe Machine/Peeler /Veneer Peeling Machine for Log Eucalyptus /Poplar with CE ISO

Product Description

4 feet 8 feet spindleless veneer peeling lathe machine/peeler for Eucalyptus:
The plywood veneer peeling line, include wood debarker, veneer peeling machine, log conveyor, and vacuum veneer stacker.This full line can produce wood veneer by processing wood log.The veneer machine are strong enough to peel kinds of hardwood like beech, birch and others, and help you produce accurate thickness of wood veneer.
Product Description

No	Veneer Peeling Machine
1	Type	4feet (1300mm)	8feet (2600mm)
2	Model	GT-014feet	GT-018feet
2	Cutting Size(Diameter*Length)	500*1300mm	500*2600mm
4	Min Residual Diameter	28mm	32mm
5	Max Stroke of Tool Slide	500mm	450mm
6	Cutting Thickness	0.5~3.6mm	0.5~3.6mm
7	Cutting Speed	50m/min	48-65m/min
8	Power	21.5KW	60 KW
9	Peeler blade(L*W*H)	1400mm*180mm*16mm	2700mm*180mm*16mm
10	Clipper Size(L*W*H)	1400mm*90mm*12.7mm	2700mm*90mm*12.7mm
11	Dimensions (L*W*H)	4100mm*2150mm*1600mm	6100mm*2200mm*1650mm
12	Total Weight	About 6000KG	About 11000KG

Detailed Photos



Product Details

1.Automatic Servo Motors
2.High speed and adjustable speed from 40- 110meter/minute
3.Double feeding port
4.Both side of core veneer will be smooth
5.High thickness of steel frame makes the weight heavy
6.Voltage can adjust according to different countries situation
