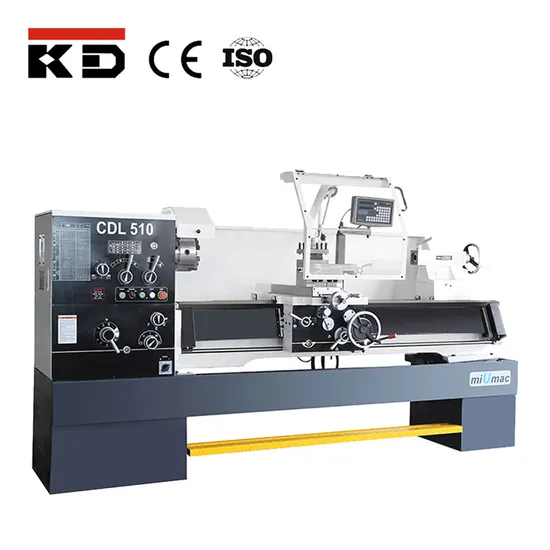

Metal Turning Lathe Machine Tool Cdl500
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Cdl500
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
40/52mm
Bed Width
312mm
Spindle Speed
40-1800rpm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | CDL400 | CDL500 | CDL660 | |||
| CAPACITY | ||||||
| Max.swing over bed | Ф400mm | Ф540mm | Ф660mm | |||
| Max.swing over carriage | Ф255mm | Ф335mm | Ф460mm | |||
| Max. swing over gap | Ф570mm | Ф700mm | Ф820mm | |||
| Width of bed | 312mm | |||||
| Max.length of workpiece | 1000mm | 1500mm | 2200mm | |||
| Effective gap length | 200mm | |||||
| SPINDLE | ||||||
| Spindle nose | D6 | |||||
| Spindle bore | Ф52mm | |||||
| Taper bore of spindle | M.T.NO.6 | |||||
| Steps of spindle speed | 12 | 16 | 16 | |||
| Range of spindle speed | 40~1800rpm | 27~2000rpm | 27~2000rpm | |||
| THREAD RANGE/NUMBER | ||||||
| Metric pitch threads | 0.5~20mm/ 24 | |||||
| Inch threads | 72~1-5/8 TPI/ 61 | |||||
| Module threads | 0.25~10M.P/ 20 | |||||
| D.P.Threads | 96~3-1/4 D/ 45 | |||||
| FEED | ||||||
| Range of longitudinal feeds | 0.04~2.46 (0.0015″~0.0913″)mm | |||||
| Range of cross feeds | 0.03~1.23 (0.0006″~0.0365″)mm | |||||
| TAILSTOCK SLEEVE | ||||||
| Taper bore | M.T.NO.4 | |||||
| Max travel | 120mm | |||||
| External diameter | Ф60mm | |||||
| OTHERS | ||||||
| Size of tool shank | 20×20mm | 25×25mm | 25×25mm | |||
| Max travel of cross slide | 240mm | 350mm | 350mm | |||
| Max travel of compound rest | 100mm | |||||
| Main motor power | 4/5.5kw | |||||
