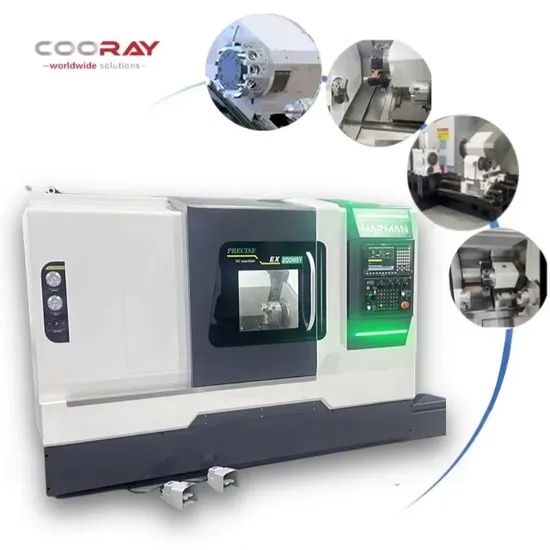

Cooray Crl200mc Mazak Design Live Turret Tailstock CNC Turning Milling Compound Machining Center Lathe
| US$50,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CRL200MC
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
No
Condition
New
Processing Capacity
Heavy Duty
Type
Turning Center
Machining Capacity
Heavy Duty
No. of Spindles
Twin
Transport Package
The Two Sides Negotiate Logistics.
Specification
2700mm*1800mm*1915mm
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
270.00cm * 180.00cm * 191.50cm
Package Gross Weight
5500.000kg
Product Description
Product DescriptionMachine tool specification (standard main unit specification) | ||
| Processing scope and capacity | Maximum turning diameter | 700 mm |
| maximum machining diameter | 340mm | |
| Maximum processing length | 520 mm | |
| travel stroke | X-axis travel | 215mm (Radius) |
| Y-axis travel | 100 mm(±50mm) | |
| Z-axis travel | 570 mm | |
| W-axis travel | 600 mm | |
| main spindle | Output power (continuous / 40%ED) | 18 KW(105N.m) |
| End form | A2-6 | |
| maximum speed★ 1 | 4000rpm | |
| chuck | 8 inches hollow | |
| through hole diameter | 51 mm (optional 66MM) | |
| sub spindle | Output power (continuous / 40%ED) | 11 KW (60N.m) |
| End form | A2-5 | |
| maximum speed★ 1 | 5000rpm | |
| chuck | 6 inches hollow | |
| through hole | solid | |
| moving speed | 25m/min | |
| direct connection motor | Electric spindle | |
| turret | Tool capacity | 12 tools |
| Tool body size | 25*25mm | |
| Maximum boring tool diameter | φ40mm | |
| BMT65 wide body; optional 15 BMT55 | ||
Milling spindle | Maximum speed of milling spindle | 6000rpm |
| Output power (continuous / 25%ED) | 5.0 Kw servo motor | |
| Maximum vertical milling cutter diameter | φ20mm | |
| Maximum diameter of cutting tool | φ20mm | |
| Maximum diameter of the taping | M20*2.5 | |
feed | X-axis fast forward speed | 25000mm/min |
| Y-axis fast forward speed | 10000mm/min | |
| Z-axis fast forward speed | 25000mm/min | |
| C-axis fast forward speed | 500rpm | |
| X/Z1/Z2/Y motor power | 2.4KW | |
| Machine tool size (excluding chip conveyor, control panel, etc.) | 2700mm(L)×1800mm(W)×1915 mm(H) | |
| Total weight of machine tool | 5500 Kg | |
| ambient temperature | 5~40ºC | |
| Relative humidity of the environment | ≤75% | |
