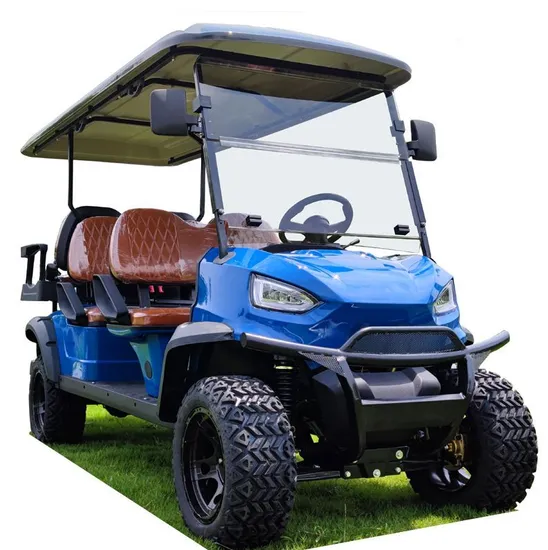

4 Wheel 72V 4kw Lithium Battery 6 Seater 6 Person off Road Street Legal Lifted Sightseeing Small Mini Electric Hunting Buggy Cart Golf Cart Club Car for Adult

Product Description

LS2040ASZ is a New 6 seater electric lifted 4wd hunting golf cart lithium, it's powered by lithium battery and 72V AC motor. The rear flip flop seat can be either used for people moving or cargo delivery.
The big teeth off road tire makes it to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc..

SPECIFICATIONS OF New 6 seater electric lifted 4wd hunting golf cart lithium LS2040ASZ
Key Components	Controller	350A/450A AC Controller
	Motor	4KW/5KW/7KW AC motor
	Battery	72V126AH/84ah Lithium Battery
Performanceand Dimensions	Passenger Capacity	6 (4+2)
	Range (Loaded) *	80-90kms
	Max.speed	32-40km/h
	Min. Turning Radius	4.7m
	Max. Gradeability	20%-30%
	Max. Loading Weight	480kgs
	Net Weight	550kgs
	Overall Dimensions	3600X1350X2100mm
Body and Frame
Frame (Chassis)	Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof	PP plastic front body and rear body; FRP roof
Windshield	Organic plastic windshield, split
Roof supports	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Plastic
Sider mirror	2pcs, foldable
Electric System
Lighting system and horn	All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer	12V
Digital meter	LCD Screen, with speedometer, odometer, battery power meter, and various indicators
Charger	Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A
Steering, Brake, Transmission and Suspension
Steering System	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4 wheels hydraulic front disc rear drum brake, foot activated parking brake
Accelerator	Stepless speed change
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio12.49:1
Suspension system	Front MacPherson independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber
Wheel & Tyre	12x7 aluminum rim & 23*10.5-12 off road Tire

Detailed Photos
Our Advantages
The first company in China who specialized in supplying lithium battery powered 72V AC system electric club car golf buggy. It gives more power, longer range, longer life span, cheaper life cost.....
3 Years Warranty Lithium Battery
LG pouch cells made lithium ion battery pack.
72V/126Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App on the mobile phone for easy operation.
4000 times life cycles based on 99% DOD.
3 Years warranty to be provided!
Lower life cost, you are deserved to have!72V AC Curtis or SME Controller
Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function.
High and Stable Quality, Powerful, Global 2 Years Warranty.72V 4KW, 5KW or 7.5KW AC Motor
Very Powerful and Maintenance Free AC motor.
Motor power varies from 4KW, 5KW and 7.5KW.
With 7.5KW motor, the climbing ability can be 35%.High Quality Rear End
High quality rear end with aluminum cage, silent, durable and no oil leakingDetails Make Difference
Optional Accessories For Choose
Let us know if you want anything specially!
Company ProfileSuzhou Lexsong Electromechanical Equipment Co., Ltd. over 17 years of experience in the electric vehicle business. 3 production lines with an annual production capacity of 15,000 units .We have exported our electric vehicles to over 40 countries worldwide We are widely used in golf courses, hotels, resorts, parks and gardens, campuses, stations, airports, residential communities, shopping centres, etc. 100 models in 10 categories for different applications. Golf carts, utility vehicles, personal transporters, sightseeing vehicles, electric trucks, rubbish trucks, fire trucks, etc. In addition, we customise your exclusive electric vehicle with short delivery times and high quality.
We can be your reliable partner for electric golf carts in China.
Certifications
Customer Photos
Packaging & Shipping
Packaging and Loading

Container loading qty	Disassembled (with top basket, front basket, front bumper)	Disassembled (without top basket, front basket, front bumper)
Qty/20'	4units	4units
Qty/40'	10units	12units
Qty/40'HQ	14units	15units

Our electric vehicles have been exported to more than 40 countries around the world
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
FAQ1. who are we?We are based in Jiangsu, China, start from 2015,sell to North America(35.00%),Southeast Asia(20.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Domestic Market(5.00%),Mid East(5.00%),Western Europe(3.00%),Southern Europe(3.00%),South Asia(2.00%),Eastern Asia(2.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Electric Golf Cart, Electric Sightseeing Bus, Electric Truck, Electric Car, Electric Scooter4. why should you buy from us not from other suppliers?-- 12+ years experience in electric vehicle business -- Provide more than 100 models of electric vehicles -- Strong customization capability -- The first company in China who mainly focus on golf cart with lithium battery and 72V AC system5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese
