Water Drop Contact Angle Measuring Instrument Goniometer Meter Tester Measurement

Product Description

water drop Contact Angle Measuring Instrument Measurement Goniometer Meter
Product Description 1. Introduction:
Contact angle mean drop a liquid on a solid surface, at the
solid-liquid-gas junctional point, liquid between the two tangent line of
gas-liquid interface and solid-liquid interface given an angle called
contact angle.

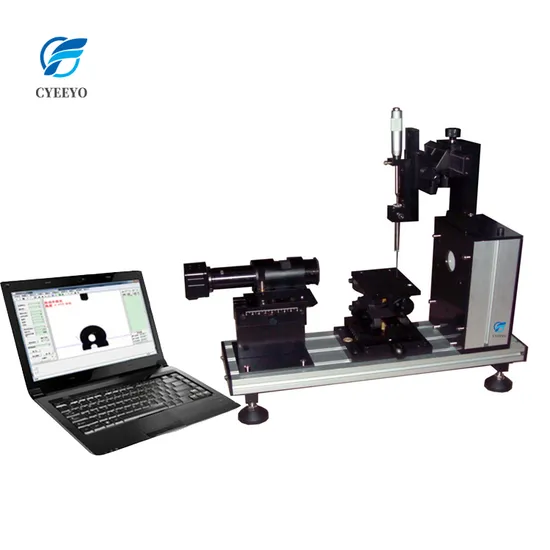

JYSP-360 Contact angle goniometer used to measure the contact
angle of a liquid drop on solid, or wettability. Widely use in petroleum,
printing, medical, painting etc. industry.
2. Theory:
When a liquid free with field of force, will show as a ball shape because
the interface tension, but when liquid meet solid surface, the ultimately
shape will be effected by the relative force of liquid inner cohesion and
adhesive force between liquid and solid.
Fig. 1 Contact angle
3 , Specification:
3.1 Optics system:
(1), Imaging: High pixel digital camera and Zooming lens, connection USB
2.0, 3 Million pixel, can clearly analysis dynamic liquid drop, and suitable to
use laptop to operate.
(2), Light source: brightness adjustable luminescence LED light, clear display
liquid drop edge;
(3), Specification: 25 frame/s, Microscope rate 0.7 - 4.5 continuous magnifying,
zoom in
20. 200 times, imaging resolution 2048*1536;
(4), Look down vision angle adjust range: 0--10imaging clearance).
(5), Left and right angle adjust range: 0--10 °
3.2 Measuring methods: Liquid drop, Solid surface energy, pendant drop
3.3 Analysis methods: θ/2, height measuring, automatic analysis (θ/2),
automatic analysis
(two base points)
3.4 Image shooting method: Single shot, continuous interval shot, continuous
shot
3.5 Contact angle measuring range: 0<θ<180 °
3.6 Measuring resolution: 0.01 °
3.7 Measuring accuracy: 0.1 °
3.8 Solid surface energy: Owens with 2 liquids
3.9 Sample size: 120*80mm
3.10 Sample max. thickness: 30m
3.11 Sample table dimensions: can measure sample
120*80*30mm
3.12 Two-dimensional table adjusting range: Up and down
0-60mm, accuracy 0.01mm Left and right 0-60mm, accuracy
0.01mm
3.13 One-dimensional table adjusting range: Front and back 0-60mm,
accuracy 0.01mm 4.14 Sample feeding mode: Sample injector
1), 100 microlitre, 2 microlitre
2), 10 microlitre, 0.2 microlitre
3.15 Sample injector adjusting range : 13mm, accuracy 0.005mm
3.16 Power supply: 127V ,60HZ
3.17 Pendant drop method can be used to measure liquid interface tension
force

Power supply: 127V ,60HZ
