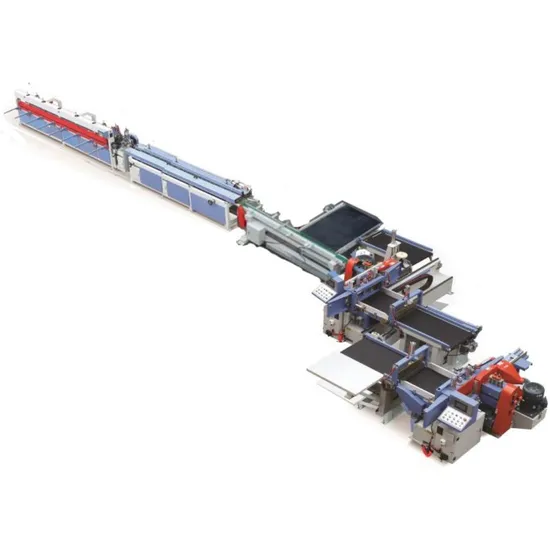

Woodworking Machinery Full Automatic Solid Wood Finger Joint Production Line

Product Description

Finger Joint Shaper and Press Machine
1.Characteristics
Finger joint shaper line using servo drive, the processing efficiency is 150% higher than normal hydraulic transmission drive.
Finger joint assembler use 6.2m double- unit type. First cut-off then Press. Oil system motor power reach 4KW. Oil cylinder size is Dia.80mm*stroke 130mm. have stronger press power processing Rubber wooden 80mm width *80mm thickness.(96kgs/cm2) Finger Joint shaper line with high efficiency,usually need 1pcs Finger joint assemblers follow to work. Max. processing 40m/min. One day work 8hours can processing 300Pcs finger joint boards(Material size: 500*50*14mm)


Detailed Images:

Turnover conveyor: two frequency conversion belt conveyors are used to automatically dump the wood 90 degrees through the speed difference and height difference and transport it to the chain machine.Through the height difference and feeding speed difference between the black square belt conveyor and the green belt conveyor, the wood with good comb teeth can be naturally overturned and dumped by 90 degrees, and will automatically follow the green belt conveyor to the chain machine;The process can be flexibly adjusted according to the feeding speed of the chain machine and wood picker, and the frequency converter hertz of the two conveyors can be adjusted.Compared with the traditional brush feeding or side feeding belt conveying, it is simpler and saves the replacement frequency of consumables
	The upper and lower feeding wheels are driven by an independent 1.5KW decelerating motor. In that match with the Chain conveyor which using the reducer motor. ensure the wooden High-speed smooth entry reduces the chance of misalignment The cross beam is equipped with synchronization rod to ensure the synchronization of the whole upper pressure beam and prevent the cylinder damage caused by the extrusion of the upper pressure beam by the side pressure push plate
cut-off first then Press joint. There are with one set 5m chain conveyor with double in-feed reducer motor control. let the wooden have enough length (reach 6m) per-joint inside. In that can avoid wrong teeth joint. And use the inventor drive increase the feeding speed. (Chain conveyor use double high-speed reduce motor feeding .increase the processing speed. Also can adjust speed by Delta inventor. The special customized chain drives the wood to run faster and more stably)

Technical Specification:
1.MXZ3515A Finger joint shaper

Max. working width	600mm
Max. working high	150mm
finger joint teeth length	12mm
main spindle speed	6000r/min
drawing knife saw speed	5600r/min
cut-off cutter speed	5000r/min
FJ cutter outside Dia.	160 mm
FJ cutter inside Dia.	70 mm
working table process size	600×1000mm
Main saw motor power	11KW
saw motor power	5.5KW
feeding motor power	0.375KW
servo motor power	1KW
air pressure request	0.5~0.8Mpa
Net weight	2000KG
overall dimension	2380×1700×1400mm

2.MXZ3515T-B finger joint shaper (with glue)

Max. working width	600mm
Max. working high	150mm
finger joint teeth length	12mm
drawing knife saw speed	6000r/min
drawing knife saw speed	5600r/min
cut-off cutter speed	5000r/min
finger joint cutter outside Dia.	160 mm
finger joint cutter inside Dia.	70 mm
working table process size	600×00mm
Main saw motor power	11KW
saw motor power	5.5KW
feeding motor power	0.375KW
servo motor power	1KW
air pressure request	0.5~0.8Mpa
Net Weight	2200KG
overall dimension	2580×1850×1400mm

3. MF756A strap conveyor

working table length	1320 mm
working table width	600mm
motor power	0.375KW
overall dimension	1330×780×920mm

4. MF756B strap conveyor

working table length	1320 mm
working table width	600mm
motor power	0.375KW
overall dimension	1330×780×920mm

5. MF756L strap conveyor

working table length	1850 mm
working table width	610mm
motor power	0.375KW
overall dimension	1980×725×920mm

6. MF746 Inventor square strap conveyor

working table length	1680 mm
working table width	1100mm
motor power	0.375KW
overall dimension	1800×1250×920mm

7. MF746LC Inventor long strap conveyor

working table length	1200 mm
working table width	610mm
motor power	0.375KW
overall dimension	1680×725×920mm

8. MF765 5meters strap conveyor

working table length	5000 mm
working table width	650mm
Reduce motor power	1.5KW*2PCS
Max. processing wood width	200mm
overall dimension	5050×830×920mm

9.MHZ1562P Finger Joint assembler

Max.press joint length	6250mm
Max.working width	150mm
Max. working thickness	80mm
Min. working length	100 mm
Min. working width	30mm
Min. working thickness	15mm
Saw motor speed	3700r/min
saw outside Dia.	355 mm
Saw motor power	3kw
In-feed reducer motor power	1.5KW*2Pcs
Oil pump motor power	4kw
working air pressure	0.5~0.8Mpa
Max. joint power	7800 Kg
Max. output	30m/min
Overall dimension	7300×1600×1560mm
