Vsm-300 Vertical Ribbon Blender & Hopper Blender
Basic Info.
Application
Powder
Application Area
Food
Certification
CE, ISO, CCC
Condition
New
Stirring Type
Spiral
Working
Convection Mixer
Size Range
200L-2000L
Mixer Type
Double Ribbon Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Continuous Operating
Warranty
1 Year Quality Warranty
Transport Package
Veneer Case
Specification
ISO
Trademark
Develop Mc
Origin
China
HS Code
8479820090
Production Capacity
200 Units/Year
Product Description

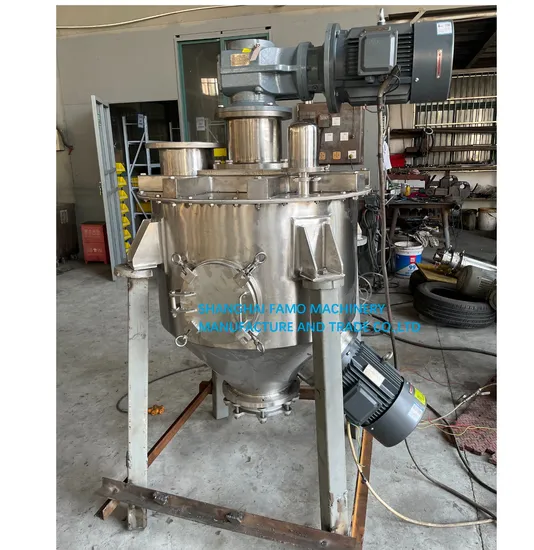

VSM-300 Vertical Ribbon Blender & Hopper BlenderTotal 300L,
Effective loading 180L/batch, touching parts sus316L, polished grade is Ra 0.4
For detail see following:
Technical parameters of VSM300
| Cylinder part | |||||
| Cylinder requirements | Common | ||||
| Cylinder working pressure | Connected to the atmosphere without pressure Resistance to negative pressure, pressure is MPa | ||||
| working temperature | normal temperature | ||||
| Cylinder size | See attached figure | ||||
| Full volume of cylinder | 300L | ||||
| Loading factor | 0.6 | ||||
| Loading capacity | 180L | ||||
| Remarks | / | ||||
| Cylinder cover form | Flat cover | ||||
| Reinforcement of cylinder cover | nothing | ||||
| Cylinder cover opening | Caliber size | function | number | Specification/Form/Requirements | |
| ∅200 | Feeding port | 1 | Chuck quick connect | ||
| ∅100 | Feeding port | 1 | Chuck quick connect | ||
| Discharge valve form | Gate valve | ||||
| Discharge valve connection | flange | ||||
| Discharge valve drive | Pneumatic | ||||
| Discharge port diameter | 200mm | ||||
| Remarks | |||||
| Jacket section | nothing | ||||
| Jacket working condition | Resistant to positive pressure, with a pressure of less than or equal to 0.3MPa | ||||
| Jacket volume | L | ||||
| Cooling method | other | ||||
| Insulation requirements | nothing | ||||
| Mixing part of the main machine | |||||
| Motor power | Ordinary 5.5KW | ||||
| Number of motor poles | 4P | ||||
| Insulation level | Class F | ||||
| Protection level | IP55 | ||||
| Motor power supply | 380V/50HZ three-phase | ||||
| Motor manufacturer | Manufacturer standard configuration | ||||
| Reducer model | Special reducer -77 | ||||
| Load device | have | ||||
| Bearing brand | HRB | ||||
| Equipment speed | 62rpm | ||||
| Load starting device | nothing | ||||
| Transmission sealing form | Rotary seal | ||||
| Transmission seal brand | Manufacturer standard configuration | ||||
| Transmission sealing material | Fluororubber | ||||
| Other sealing materials | silica gel | ||||
| Remarks | |||||
| Cut section X1 | |||||
| working temperature | normal temperature | ||||
| working pressure | Atmospheric connection | ||||
| Motor power | Ordinary 3KW | ||||
| Number of motor poles | 6P | ||||
| Motor power supply | 380V50HZ | ||||
| Insulation level | Class F | ||||
| Protection level | IP55 | ||||
| Motor manufacturer | Manufacturer standard configuration | ||||
| Connection form | Coupling connection | ||||
| Connection device brand | Manufacturer standard configuration | ||||
| Load device | have | ||||
| Bearing brand | HRB | ||||
| Equipment speed | 960rpm | ||||
| Transmission sealing form | Rotary seal | ||||
| Transmission seal brand | Manufacturer standard configuration | ||||
| Transmission sealing material | Fluororubber | ||||
| Other sealing materials | silica gel | ||||
| Contact material material | 316L stainless steel | ||||
| Not in contact with material materials | 304 stainless steel | ||||
| Motor casing | Uncovered shell | ||||
| Supporting facilities | nothing | ||||
| Equipment appearance requirements | Stainless steel outer surface polishing, carbon steel outer surface paint treatment, paint color is standard color | ||||
| Remarks | |||||
| Protective function | Dust prevention and pollution prevention, prevent workers' hands from touching directly, and increase Factor of safety | ||||
| Equipment material | |||||
| Contact with materials | 316L stainless steel | ||||
| Part that does not come into contact with materials | 304 stainless steel | ||||
| Working head material | 316L stainless steel | ||||
| Surface Treatment | |||||
| Inner cylinder | Wire drawing and polishing, grade Ra 0.4 | ||||
| Inner operculum | Wire drawing and polishing, grade Ra 0.4 | ||||
| Work head process | Wire drawing and polishing, grade Ra 0.4 | ||||
| Mixing shaft process | Wire drawing and polishing, grade Ra 0.4 | ||||
| Other surfaces | Conventional stainless steel outer surface wire drawing and polishing, carbon steel outer surface paint treatment, paint color is standard color | ||||
| Electrical control | |||||
| Control form | Non explosion-proof control box | ||||
| Electric control mode | ordinary | ||||
| Main electrical components | CHINT or DELIX brands | ||||
| Wiring affairs | Internal wiring | ||||
| control function | Starting and stopping the host Starting and stopping of the shearing machine Power indication and emergency stop Motor current display | ||||
| Box material | Sus304 | ||||
