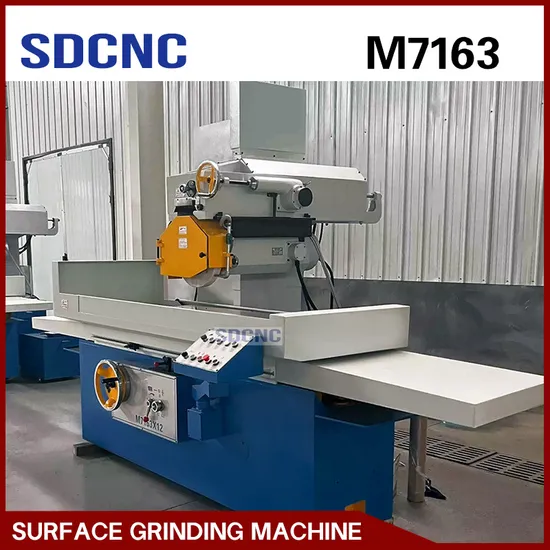

M7163 Metal High Precision Surface Grinder Machine
| US$17,500.00-22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7163
Type
External Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Machine Grinding Machine Mill M7150 Electric Grind
Size of Work Table(L x W x H)
1250X500mm
Max. Distance From The Spindle Centerlin
800mm
Max. Vertical Movement of Grinding Head
600mm
Transport Package
Wood Packing
Specification
4500x2700x2800
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
450.00cm * 270.00cm * 280.00cm
Package Gross Weight
5150.000kg
Product Description
Product DescriptionThe main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:
| Technical specifications | Units | M7163x1250 | M7163x1600 | M7163x2000 | |
| Size of work table (L x W ) | mm | 1250x630 | 1600x630 | 2000x630 | |
| Max. Longitudinal movement of worktable | mm | 1350 | 1700 | 2100 | |
| Max. Distance from the spindle centerline to the worktable surface | mm | 845 | 845 | 845 | |
| Max. Cross movement of grinding herd | mm | 700 | 700 | 700 | |
| Max. Vertical movement of grinding head | mm | 600 | 600 | 600 | |
| Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 |
| Each turn | mm | 1.00 | 1.00 | 1.00 | |
| Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 |
| Speed | R/min | 1450 | 1450 | 1450 | |
| Abrasive wheel dim (L x D x W) | mm | 400x127x40 | 400x127x40 | 400x127x40 | |
| Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | |
| Total power of motor | KW | 14 | 14 | 14 | |
| Power of spindle motor | KW | 7.5 | 7.5 | 7.5 | |
| Power of oil pump motor | KW | 5.5 | 5.5 | 5.5 | |
| Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
| Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
| Package(L x W x H) | mm | 3800x2700x2800 | 4500x2700x2800 | 5500x2700x2800 | |
| Net weight | Kg | 5100 | 5150 | 5200 | |
