Factory Price Honle AVR Series Automatic Voltage Stabilizer Circuit Diagram

Product Description

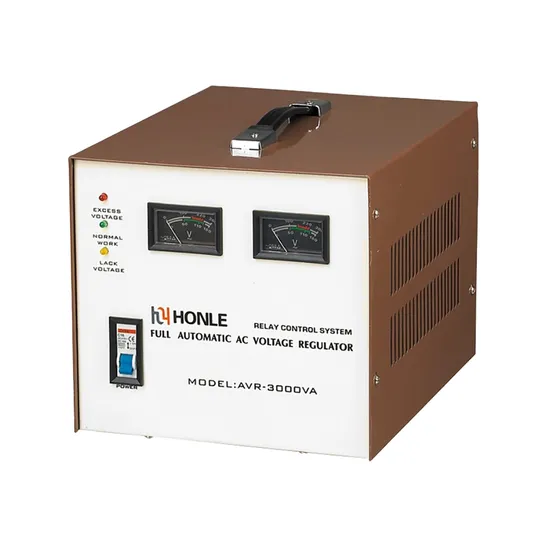

HONLE AVR series relay type voltage stabilizer
Feature
This series automatic voltage regulator is a kind of delay control stabilizer, it owns wide input voltage range, compact size, light in weight, delay output, little wave distortion and reliable, strict design and accurate assemble. This kind of stabilizer can add voltage regulating function also.
Technical Features
1. Input voltage: 150-270V
2. Output voltage: 220V+/-8% 110V+/-10%
3. Delay output time: 3-7 min /3-7 sec
4. Frequency: 50/60Hz

Model	Power	AVR-500VA	AVR - 1000VA	AVR - 1500VA	AVR -2000VA	AVR - 3000VA	AVR - 5000VA
Input	Phase	Single Phase
	Voltage	AC150-270V
	Frequency	50Hz/60Hz
Output	Voltage	220V+/-8%,110V+/-10%
	Efficiency	98%
	Frenquency	50Hz/60Hz
	Over voltage protection	AC246V+/-4V
Protection	Under-volt	Optional
	Over-volt	Optional
	Over heat	Optional
	By pass	No
	Delay	3-7min/3-7sec
	Over load/short circuit	Yes
Environment	Operating temperature	-10~40 C
	Storage temperature	-15~45 C
	Humidity	20% to 90%
Packing	Pcs/carton	4	4	4	1	1	1
	Machine size(cm)	19*17.5*14	19*17.5*14	21.5*19.5*17	24*29.5*19.5	23.5*30.2*23.5	23.5*30.2*23.5
	Package dimension(cm)	42*24*33	42*24*33	49*26.5*38.5	29*34*23	29*34*26	29*34*36

Company Introdution
Our advantages
1.Good business philosophy:
Our company adheres to the business philosophy of "quality of survival, innovation and development."
2.Advanced equipment:
We have purchased advanced production and testing equipment at home and abroad. For example, Japan's CNC sheet metal production line, Germany's imported CNC cutting machine and other equipment.
3.Complete logistics service:
With the development of the company, the construction of warehousing and logistics channels in central cities has been basically completed. The company can fully meet the needs of users in terms of quality, quantity, variety and delivery time.
4.Honor:
The company has passed the ISO 9001 quality management system, ISO 14001 environmental management system and occupational health and safety management system certification.
FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, D/P,Western Union PayPal. If others, we can discuss.
Q 2. how's the delivery time ?
A. usually it will take about 30 days after order confirmed.
Q 3. tell me the standard of package?
A. For the small capacity, we will use carton, but for big capacity, we should use strong wooden case for protection.
Q 4.Could you offer Form A or C/O ?
A. No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates.
Q 5.Would you accept to use our logo ?
A.If good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model.For example for relay type capacity , month capacity can reach near 5000pcs/month while big capacity near 2000pcs/month.
Q 7.Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q 8. what kind of certificates you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS and so on.
Dear friends, we are your Reliable Voltage Stabilizer Partner!
We appreciate if you leave detail product information here or send email to our mail box: .
It's our honor to relate with you!
We will feedback as soon as possible. Thanks very much.
