UL854 Listed 600V Type Seu and Ser Two Conductor Aluminum Conductor Copper Conductor Concentric Cable Wire XLPE Insulation Service Entrance Cable Wire

Product Description

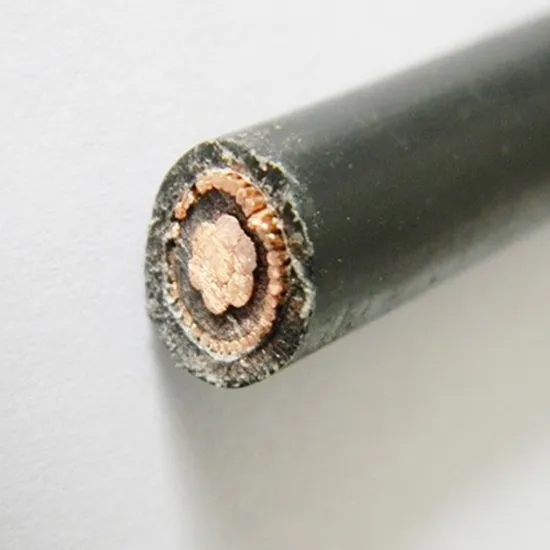

Product Description Concentric Cable
Application: Concentric cable is different from traditional power cables. It uses one core from the 2 or 3 cores cables as the shielding layer, which is twisted over the insulation or inner sheath of one core. The core inside is the main core when application, and the core twisted outside is the neutral core. It saves one layer insulation, and makes the overall diameter much smaller. At present, concentric cable are popular in Africa, USA and Canada. Concentric cable Transmit the electric power does not interfere with the surrounding electrical equipment; also eliminates the external electromagnetic interference connected to the power Cable on the impact of electrical equipment
Applicable standards:
SANS 1507-6 AS/NZS 4961, HD603, HD626, ICEA S-66-524, KS04-1022, VDE 0276-603, or the standards agreed by both of the customers and us.
Production Scope:
Rated Voltage: Up to 1000V or upon customer's request
Core Number: 1, 2, 3 cores with neutral core
Coverage: 100% and non-100% coverage
Nominal cross section: 6mm2 to 240mm2
Construction:
For Main Core:
Conductor: Copper or Aluminum
Insulation: XLPE/PE/ PVC
Neutral conductor: Copper or aluminium, Wrapped on insulation or inner sheath
Communication core (optional):
Conductor: Copper
Insulation: PE
Outer Sheath: XLPE, PVC, PE
* We can design and produce according to client's requirement
Product Parameters

Technical characteristics of concentric cable -UL854
Core	AWG	Structure Size (mm)											Copper cable (kg/km)
		Conductor			Insulation	Concentric conductor			Outer sheath
		Single wire			XLPE	Single wire			UV-PVC
		No.	Dia.		Thick	No.	Dia.		Thick		Dia.
1	16	7	0.49		1.14	39	0.321		1.14		6.82		81.46
1	10	7	0.98		1.14	34	0.511		1.14		8.67		172.04
1	8	7	1.23		1.14	25	0.643		1.14		9.68		221.58
1	6	7	1.55		1.14	25	0.813		1.14		10.98		160.5
1	4	7	1.96		1.14	27	1.02		1.14		12.62		509.26
Technical characteristics of concentric cable - IEC60502-1
Size (mm2)	Structure Size mm											Copper cable (kg/km)
	Concuctor			Insulation		Concentric conductor		Outer sheath
	Single wire		Dia.	PVC		Single wire		UV-PVC
	No.	Dia.		Thick		No.	Dia.	Thick		Dia.		(kg/km)
10	7	1.35	4.05	1.55		20	0.85	1.4		11.79		301.55
16	7	1.70	5.1	1.55		32	0.85	1.4		12.84		431.7
25	7	2.14	6.42	1.6		29	1.13	1.5		15.02		647.46
Aluminum Cable
16	7	1.70	5.1	1.55		26	1.13	1.4		13.42		244.16
25	7	2.14	6.42	1.6		29	1.13	1.5		15.02		307.3
35	19	1.53	7.65	1.65		27	1.35	1.6		16.99		390.15

Detailed Photos
* We can design and produce according to client's requirement.
