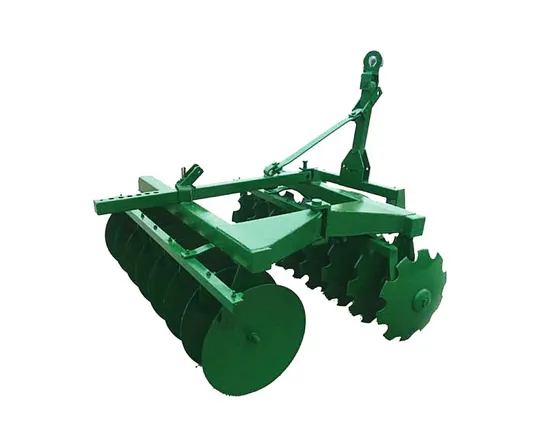

Farm Tractor Plough Harrowing Disc Heavy Compact Model Disc Harrow

Farm Tractor Plough Harrowing Disc Heavy Compact Model Disc Harrow

US$625.00-1,021.00 1 Piece (MOQ)

Basic Info.

Model NO.
1BJX Series
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
EU
Color
Red
Warranty
One Year
Belonging
Agriculture Machine
Using
Landconsolidation
Power
25HP
Engine
Diesel Engine
Transport Package
Wooden Package
Specification
Customized
Trademark
Land River
Origin
China
HS Code
8432290000
Production Capacity
500sets/Year

Product Description

Product Description
Our main products include DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW.FARMTRAILER,GRASS MOWER,SEEDER,HARVESTER,DISS BLADE,BREAK SHOVEL AND OTHER AGROPARTS,ESPECIALLY IN HEAT TREATMENT OF THE BLADE.WE HAVE ACCUMULATED RICHEXPERIENCE,THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLEQUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED. Mounted light duty disc harrow is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances and remains. It can be used in light and medium soil. The disc plough is completely mounted with tractor .During operation ,the disc is rotating to turn the soil ,it is suitable for opreation on the field with grasses ,straw and stems of crops or plants ,ect. It is good at cutting the grasses and straw and free from stopped by the grasses ,soil or stones,ect. It is efficient in the work ,it is good quality during operation ,it is easy to adjust and duabble.
If there is any needs or questions, feel free to contact me via email or phone.
Detailed Photos
Product Parameters
Model 1BJX-1.4A 1BJX-1.6A 1BJX-1.8A 1BJX-2.0A 1BJX-2.3A 1BJX-2.5A 1BJX-2.7A
Width of cut (mm) 1400 1600 1800 2000 2300 2500 2700
Depth of cut(mm) 140
Dia of disc 560/610
Qty of disc 12 14 16 18 20 22 24
Weight (kg) 440 490 550 590 620 650 720
Tractor power (hp) 30 40 50-60 60-70 70-80 80-100 90-110
Mounted cat Cat II


Application
