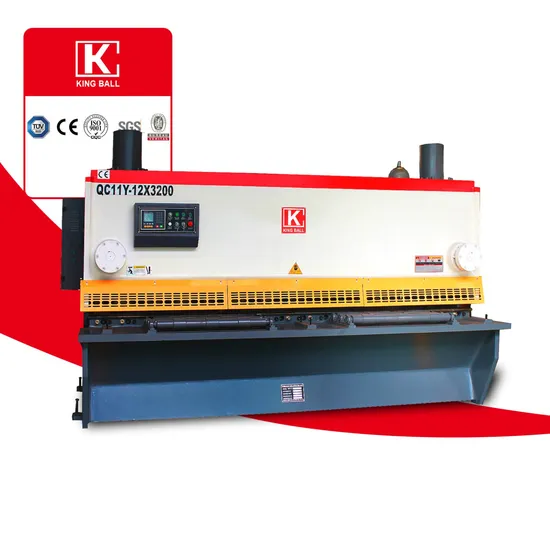

E21s/Dac310s Controller QC11y 12mm Thickness 3200 Hydraulic Plate Shearer Shearing Machine for Sale

Product Description

Products Description

Hydraulic Guillotine Shearing Machine	QC11Y-12X2500	QC11Y-12X3200	QC11Y-12X4000	QC11Y-12X6000
Cutting Thickness (mm)	12	12	12	12
Cutting Width (mm)	2500	3200	4000	6000
Throat Depth (mm)	100	100	100	100
Cutting Angle (o)	0.5°-2°30′	0.5°-2°30′	0.5°-2°30′	0.5°-2°30′
Backgauge Range (mm)	20-800	20-800	20-800	20-1000
Stroke Number (times/min)	≥6	≥5	≥6	≥5
Main Motor (kw)	18.5	18.5	18.5	18.5
Weight (kg)	8800	10000	14000	30000
Overall Dimensions (LxWxH in mm)	3195x1950x2210	3895x1950x2240	4710x2000x2485	7150x2300x3100

Details Images
QC11Y(K) Series CNC Hydraulic Guillotine Shearing MachineMain functions and features1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).Pneumatic Sheet Support SystemMonobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. Anti-twist SystemAnti-twist system contrasts the piece warping by pushing it against the upper blade.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet. Front Feeding TableFeeding the metal sheet automatically controlled by PLC ,the precision of the feeder is more accurate
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation.
Our ServicePre-sales services:1. inquiry and consulting support 2. sample testing support 3. visit our factoryAfter-sales services:1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas Contact WaysMs.Daisy ShanCustomer ManagerE-mail:daisy@jinqiu.cc
FAQ
1.Can you supply the relevant documentation?Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.
